Galvanized Steel 3”4" 6" Web Width C Purlin c shaped profile Roll Forming Making Machine

The advantages of C purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

Steel purlin profile design

3", 4", and 6" C-purlins refer to the depth (height) of the purlin profile, which is the vertical part of the "C" shape.

These sizes are commonly used in construction for supporting roofing and cladding.

Advantages of C-Purlins in These Applications:

• Strength-to-weight Ratio: C-purlins are lightweight but strong, making them ideal for long spans without the need for numerous intermediate supports.

• Corrosion Resistance: Typically galvanized or coated with protective layers to prevent rust and corrosion, especially in outdoor or industrial environments.

• Cost-Effective: Their design and material efficiency make them a cost-effective option compared to solid beams or heavier materials.

• Ease of Installation: C-purlins are easy to handle and install, with pre-drilled holes or slots for bolts, speeding up construction time.

•

Each part of C Purlin Machine

1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm

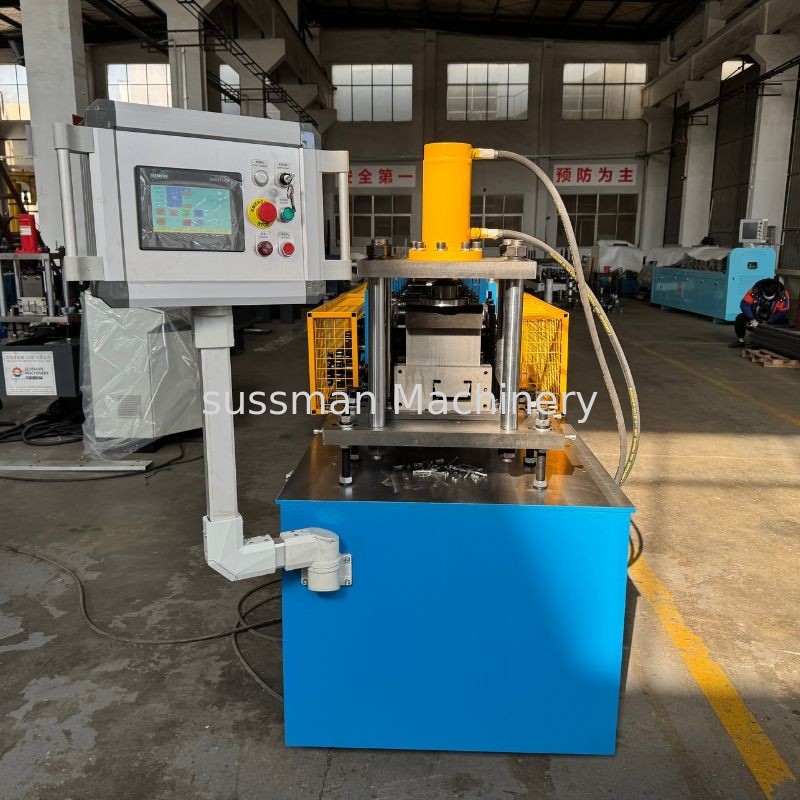

3. Hydraulic cutting device

It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products

hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine

cutting blade material:Cr12 Mov steel with high treatment



3.Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.

(6) Length inaccuracy can be amended easily.
