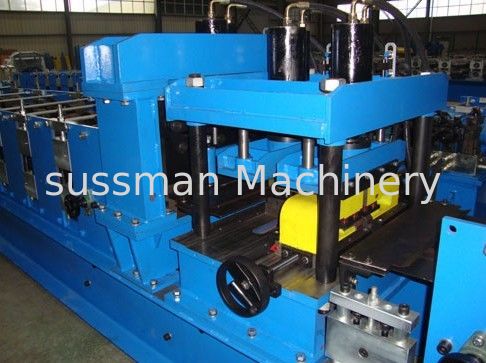

Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System
  • Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System
  • Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System

Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CCC, SGS, ISO9001, CE
Model Number SS-CZPI
Product Details
Forming Speed:
12-20m/min
Roller Station:
16 - 18 Stations
Main Motor Power:
11Kw
Hydraulic Station Power:
7.5Kw
Drive:
Chain Drive
Machine Weight:
About 3.5 Ton
Machine Size:
3500mm*800mm*800mm
High Light:

c purlin roll forming machine

,

c z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
55 - 65 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10 sets per month
Product Description

Crossbeam Used High-intensive Z Purlin Roll Forming Machine Panasonic PLC Control System





Technical Parameter



1.   Steel Sheet Thickness: 1.5-3.0mm (depend on requirement )

2.   Hydraulic power: 7.5Kw

3.   Transmission way: double chain

4.   Material of blad: Cr12, quenching treatment

5.   Capacity of Decoiler: 3 ton passive decoiler

6.   Forming Speed: 10-20m/min

7.   Roller Groups: about18 stations main roller

8.   Roller Material: GCr15 grade steel, quenching treatment

9.   Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 11 Kw





Main Components



1. 3 ton passive decoiler-------------------------------- 1Set

2. Main roll forming machine----------------------------  1Set

2. Hydraulic station-----------------------------------------  1Set

3. Cutting device--------------------------------------------  1Set

4. Finished products tabel--------------------------------- 2Set

5. PLC control system-------------------------------------- 1Set

6. Spare parts------------------------------------------------ 1Set





Advantage for



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable





Working Flow

Decoiler ---- Feeding --- Levelling--- Punching --- Cutting ---Roll forming--- Run out table





Profiles of Z Purlin Roll Forming Machine







Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 0

Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 1







Loading Pics

Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 2Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 3

Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 4Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 5
Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 6Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 7
Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 8Crossbeam High intensive Z Purlin Roll Forming Machine Panasonic PLC Control System 9



Company Profile

Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.



Transportation



All goods will be shipped to your country, containers number will be decided with how many machines would you choose



Installation of the machine



The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Sussman service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)

- Raw material,process material and fuels

- Raw material for test blocks

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.



Commissioning of the machine



The components of the machine are commissioned one after the other. At the end of the commissioning the machine is ready for production and is handed over.

The commissioning comprises:

- Commissioning by Sussman service technicians

- Training at the machine

- The following services are rendered

- Run up of the machine components

- Testing of all functions of the machine components

- Start of a fully automatic molding process

- Execution of machine acceptance

Delivery extent does not comprise of:

- Raw materials, process materials and consumables

- Raw material for test blocks

- Transport and lifting devices

The operators of the plant should be present during the commissioning in order to become familiar with the new machines.



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email



Quality Control



1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.





FAQ



1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
