Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw
  • Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw
  • Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw

Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Roller Stations:
19 Stations
Material Thickness:
2-4mm
Forming Speed:
10-15m/min
Roller Material:
GCr15
Main Motor Power:
20Kw
Cutting Motor Power:
5.5Kw
High Light:

plate rolling machine

,

tube forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

Material Thickness 2-5mm M Purlin Roll Forming Machine Main Motor Power 20Kw





1. Technical Parameter



Items

Specifications

Material of coil

Material Thickness

2-4mm



Un Coiler

3 tons manual

Forming system

Rolling Speed

10-15 m/min



Roller Stations

19 stations



Roller Material

Gcr15 coated with chrome





Maim Motor Power

20kw



Motor cutting Power

5.5kw

Cutting

system

Material Of Cutting

CR12mov with quench treatment



Hardness

HRC58-62



Tolerance

+-1.5mm



Cutting blades

3 sets

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require



Control System

PLC (Panasonic) as list in the note



Weight

12 tons



Way Of Drive

1.5 inch double chain





2. Machine List



3 ton passive de-coiler

1 set

Punching

1 set

Main roll forming machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

Out table

2 units







3. Profile Drawing

Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw 0



Notes: Change the size by spacer sleeve

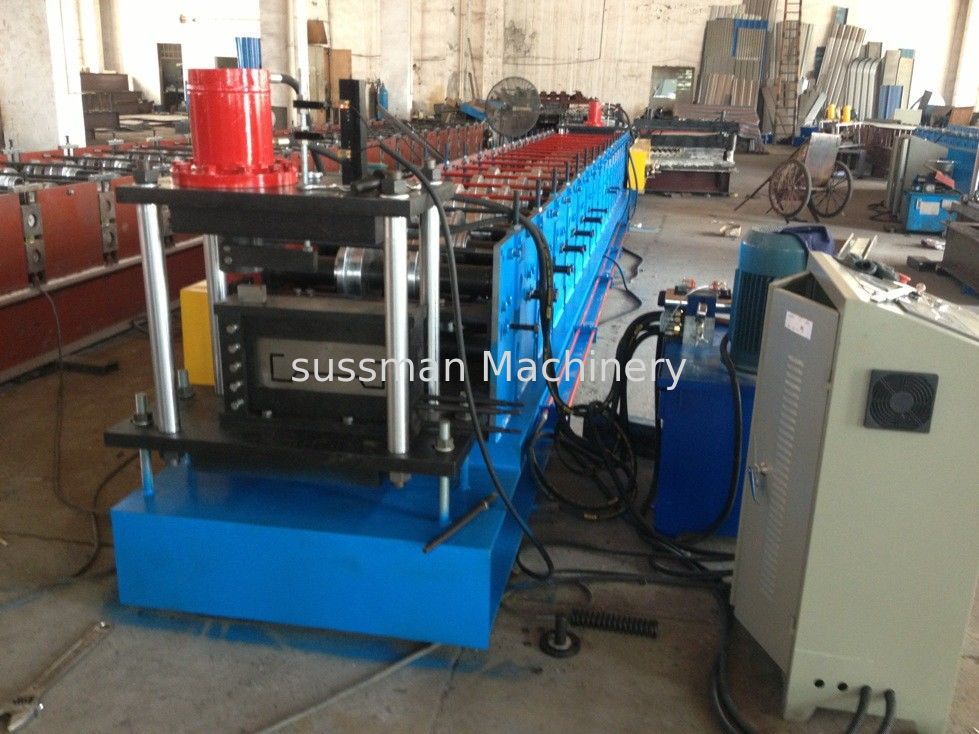

4. Machine Photo

Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw 1

Material Thickness 2 - 5mm M Tube Forming Machine Metal Bending Equipment 20Kw 2





6. Loading Pics
12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm 12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm

12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm



7. Company Introduction



Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
