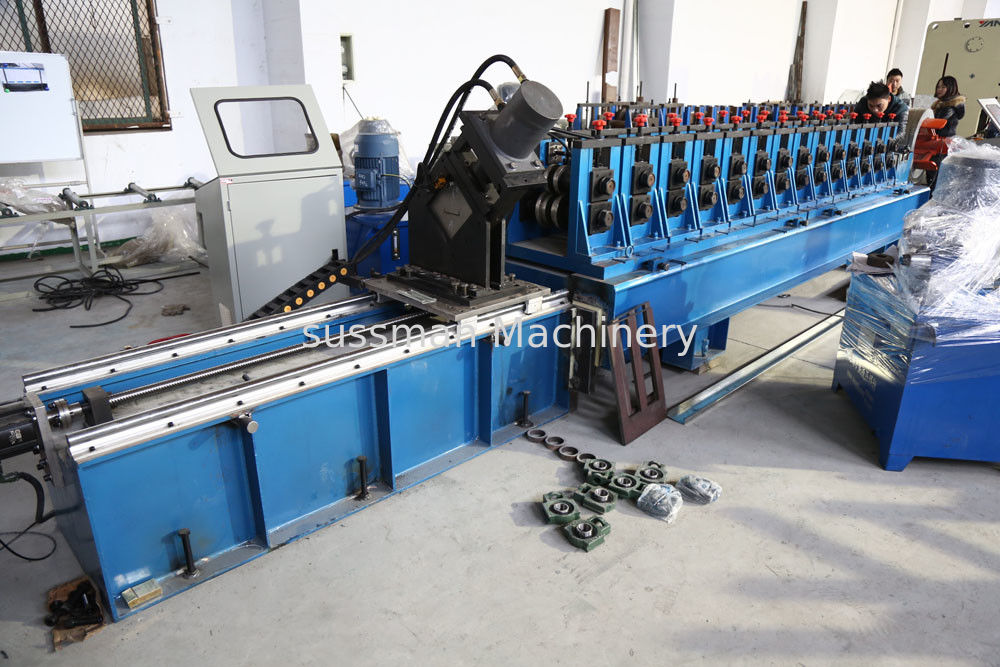

Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm

Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm
Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm
Basic Information
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SH-CT
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 90 days after deposit
Supply Ability: 10 sets/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Decoiler: 5 Tons Hydraulic Max Coil Width: 1250mm
Motor Power: 22Kw Press Machine: JH21-315B
Material Thickness: 1.0mm-4.0mm Forming Speed: 4-6m/min
High Light:

cable tray machine

,

plate rolling machine



Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm





1.Introduction of machine

  • Thickness of material :1.0-3.0mm
  • Forming speed:10-15m/min
  • Total power:15KW
  • Driven type:by Gear
  • Control system:PLC control
  • De-coiler type:Automactic
  • Hydraulic cutting system is controlled by computer
  • The machine will be operated by the auto PLC controlling system, which makes the operation more convenience to be controlled.
  • The profile will be pre-punched then be roll formed, that’s the big different with the traditional production ,which is faster and more safety than the traditional one.
  • Producing different specification can be finished by changing the die, and the bending machine



2. Main feacture


Our company adopt advanced roll forming processing technology that roll forming after the preliminary punching to improve production speed .
The whole line adopting full auto PLC controlling system ,making the operation more convenience.
Producing different specification can be finished by changing the die, and the bending machine.



3. Machine Components



Name Qty
5 tons hydraulic decoiler  1 set
Roller Leveller 1 set
Servo feeding machine 1 set
Punching Press machine 1 set
Punching moulds 4 sets
Roll forming machine  1 set
PLC  1 set
Cutting device 1 set
Out put table 2 sets
Hydraulic station 1 set
Toolbox 1 set
Spare Parts 1 set







4. Company Introduction



Sussman Machinery (Wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. we have more than 20 years experience in making the roll forming machine. And our machine is customized according to customer's sheet profile drawing. We have a strong enginner team to design the machines for you! And we also own a strong and mature after sales service team to offer you any service to help you.



5.Our Exhibitions

Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm 0Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm 1

Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm 2Gearbox Transmission Cable Tray Machine Cold Roll Former Shaft Diameter Ø 80mm 3
