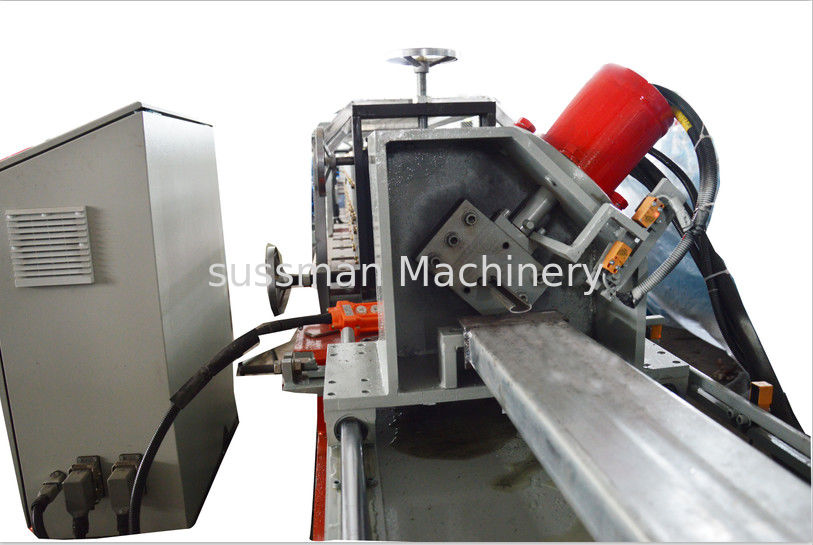

20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations
  • 20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations
  • 20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations

20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE
Model Number SS-CR
Product Details
Material Thickness:
0.7-0.9mm
Forming Speed:
20-25 M/min
Main Motor Power:
7.5Kw
Forming Stations:
10 Stations
Hydraulic Power:
4Kw
Highlight:

plate rolling machine

,

tube forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
55-65 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Product Description

0.7 - 0.9mm Thick 20 mm Effective Width Curtain Rail Roll Forming Machine 10mm Height 10 Stations




Curtain Rail Technical Parameter


1.   Steel Sheet Thickness: 0.7-0.9mm (depend on requirement )
2.   Hydraulic power: 4Kw
3.   Transmission way: chain
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 20-25m/min (not include cutting and punching stop time)
7.   Roller Groups: 10 stations upper and 16 stations down
8.   Roller Material: 45# steel, quenching treatment
9.   Material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw



Curtain Rail Main Components





     S.N

   Equipment name


   Quantity
      1.

    3T passive un-coiler


    1 set
      2.

    Feeding and leveling device


    1 set
      5.

    Main roll forming machine 10 stations drived by chain



    1 set
      6.

    Hydraulic station


    1 set
      7.

    Control system (including control box)


    1 set
      8.

    Out tables


    2 sets
      9.

    Servo fly cutting


    1 unit




















Advantage for Curtain Rail



1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable




Working Flow of Curtain Rail

Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

 20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 0


Profiles of Curtain Rail


20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 120mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 2



20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 3


Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

Loading Pics


20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 420mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 5

20mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 620mm Effective Width Curtain Rail Roll Forming Equipment 10mm Height 10 Stations 7


Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email





FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
