6mm X 1600mm Steel Coil Slitting Line Steel Cutting Machine 40m / Min

(1-6)x1600mm Steel Coil Slitting Line with Slitting Speed 40m/min​

1. Technical Parameter

• Thickness of coil plate: δ=1—6mm;
• Width of coiled plate: 1600mm;
• Coil weight :Max 10T;
• Coil I.D: ф480-ф520mm;
• Coil O.D: ≤ф1600mm;
• Slitting pivot : ф240mm; material 40Cr;
• Slitting  blade: ф240×ф380×20;
• Material of slitting blade: 6CrW2Si
• Recoiler I.D of waste: ф420 mm;
• Recoiler I.D: φ480-520mm

• Application  hot rolled steel coil plat

2. Machine List

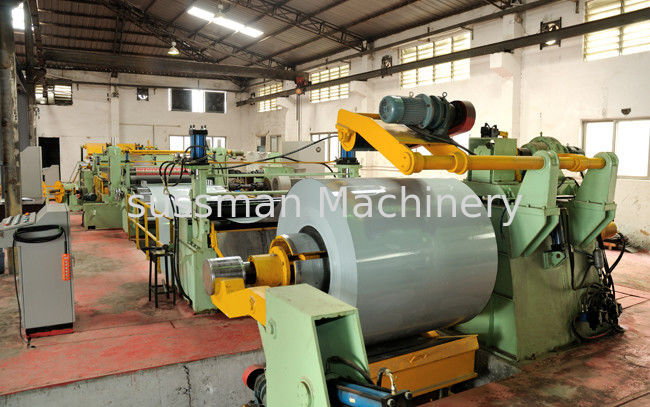

3. Machine Photo

4.Loading Photoes


5. Installation

The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Suhang service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, etc.)to the machine(control cabinet)

- Raw material,process material

- Raw material for test

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.

6. Commissioning of the Machine

The components of the machine are commissioned one after the other. At the end of the commissioning the machine is ready for production and is handed over.

The commissioning comprises:

- Commissioning by Suhang service technicians

- Training at the machine

- The following services are rendered

- Run up of the machine components

- Testing of all functions of the machine components

- Start of a fully automatic molding process

- Execution of machine acceptance

Delivery extent does not comprise of:

- Raw materials, process materials and consumables

- Raw material for test

- Transport and lifting devices

The operators of the plant should be present during the commissioning in order to become familiar with the new machines．
