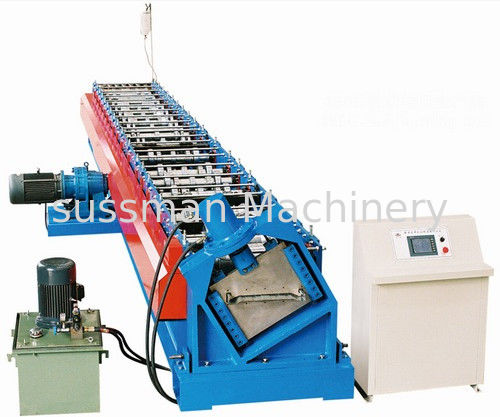

584mm Feeding Width Anode Plate Roll Forming Machine High Speed Automatic Control

584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control
584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control

Large Image :  584mm Feeding Width Anode Plate Roll Forming Machine High Speed Automatic Control

Product Details:

Place of Origin: Wuxi China
Brand Name: SUSSMAN
Certification: CE
Model Number: SS-AP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packing
Delivery Time: 65-75 days after deposit
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Material Thickness: 1.3-1.5mm Forming Speed: 8-10m/min
Rolling Stations: 18 Stations Main Motor Power: 11kw
Transmission Way: Chain Drive Roller Material: Gcr15 Bearing Steel With Heat Treatment
Shaft Material: #45 High Strength Steel Cutting Way: Hydraulic Cutting
Warrenty: 1 Year
High Light:

metal forming machine

,

plate rolling machine

584mm Feeding Width Anode Plate Roll Forming Machine High Speed Automatic Control







Technical Data

1.   Steel Sheet Thickness: 1.3-1.5mm (depend on requirement )
2.   Transmission way: single chain
3.   Transmission material: 45# steel, high frequency quenching
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 8-10m/min
7.   Roller Groups: 18 stations
8.   Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9.   Feeding material: galvanized steel
10. Principal Axis: 45#steel with quenching treatment
11. Main motor power: 11 Kw
12. Hydraulic power: 5.5Kw






Main Components


S.N Equipment name Quantity
1. 3T passive un-coiler 1 set
2. Hydraulic punching 1 set
3. Main roll forming machine 1 set
4. Hydraulic cutting 1 set
5. PLC Control system (including control box) 1 set
6. Out tables 2 sets





Advantage of roll forming machine

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable



Working Flow of production line

Decoiler----Feeding---Roll forming---Cutting---Run out tables

584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 0







Profile of  Anode Plate Machine

584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 1









Company Introduction



  Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.









Customer Visiting



584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 2 584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 3









Load Pics



584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 4 584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 5

584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 6 584mm Feeding Width  Anode Plate Roll Forming Machine High Speed Automatic Control 7
