Place of Origin: | China |
---|---|
Brand Name: | Sussman |
Certification: | CE,SGS, ISO |
Model Number: | RF-CT |
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | Standard Packing with steel wire fixed and film coated |
Delivery Time: | 70 days after deposit |
Supply Ability: | 5 set per month |
Profile Width: | 100-600mm | Material Thickness: | 1-2mm Galvanized Coils And Black Steel |
---|---|---|---|
Profile Height: | 50-100mm | Uncoiler: | 5 Tons Hydraulic |
Punching Way: | Hydraulic Punching 1 Set | Rolling Speed: | 5-10m/min |
Roller Stations: | 20 Stations | ||
High Light: | metal forming machine,plate rolling machine |

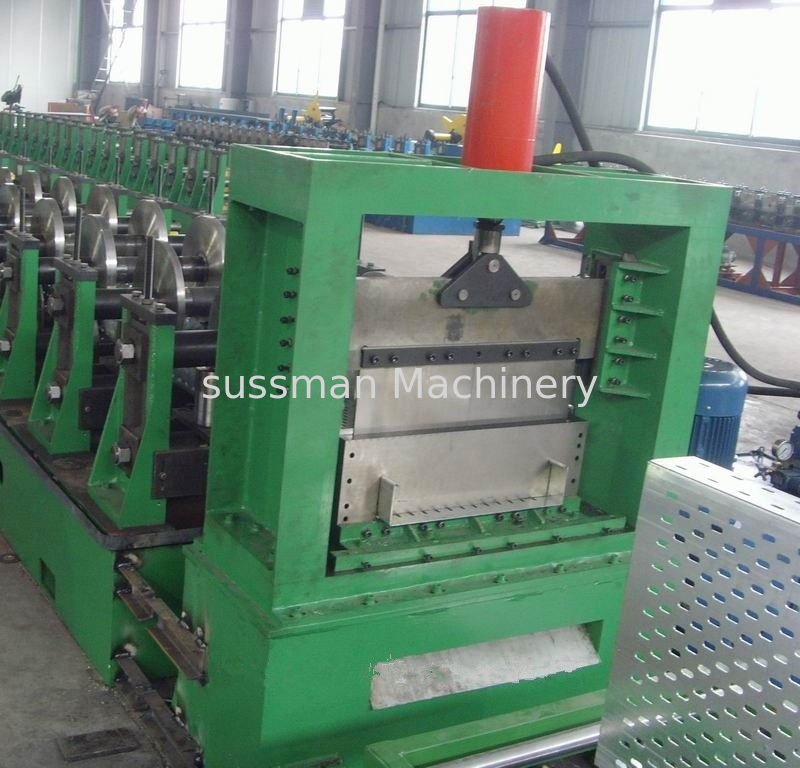

CE&ISO Cable Tray Making Machine With Best Quality
pecifications of calble tray roll forming machine
|
Items |
Specifications |
Materials |
Width of the profile |
100-600mm |
|
Thickness |
1-2mm galvanized coils and black steel |
|
Height of the profile |
50-100mm |
|
Un Coiler |
5 tons hydraulic |
Punching |
Way |
Hydraulic punching 1 set |
Forming system |
Rolling Speed |
5-10m/min |
|
Roller Stations |
About 20stations |
|
Roller Material |
Gcr15with quenching |
|
Shaft |
Dia 90mm |
|
Maim Motor Power |
15 kw |
|
Hydraulic cutting Power |
7.5 kw |
Cutting |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
Tolerance |
+-1.5mm |
Electrical control system |
Electric Source |
380V, 50HZ,3 phase |
|
Control System |
PLC (Panasonic) as list in the note |
|
Weight |
About 18 tons |
|
Profile width and height adjustment |
Control by the motor |
|
Way Of Drive |
1.2 inch single chain |
|
Size of main machine |
About Length 13000mm* Width 1800mm* |
Cable Tray Description
A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.
Machine Components
S.N |
Equipment name |
Quantity |
1 |
5T hydraulic un-coiler |
1 set |
2 |
Coil Levelling device |
1 set |
3 |
Hydraulic Punching |
1 set |
4 |
Hydraulic Pre-cutting |
1 set |
5 |
Main roll forming machine |
1 set |
6 |
Hydraulic station |
1 set |
7 |
Control system ( including control box) |
1 set |
8 |
Out tables |
2 units |
9 |
Spare parts |
1 package |
Working Flow of Roll Forming Machine
Uncoiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table
