Place of Origin: | China |
---|---|
Brand Name: | Sussman |
Certification: | SGS.CE.ISO |
Model Number: | SM-PC |
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | Film and Steel |
Delivery Time: | 60-90 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per month |
Name: | Perforated Cable Tray Roll Forming Machine | Material Thickness: | 1.5-3.0mm |
---|---|---|---|
Material: | 100mm-800mm Galvanize Steel | Main Motor Power: | 22KW |
Forming Speed: | 2-4m/min | Roller Stations: | 20 Stations |
Power Supply:: | 380v 50hz | ||
High Light: | metal forming machine,plate rolling machine |

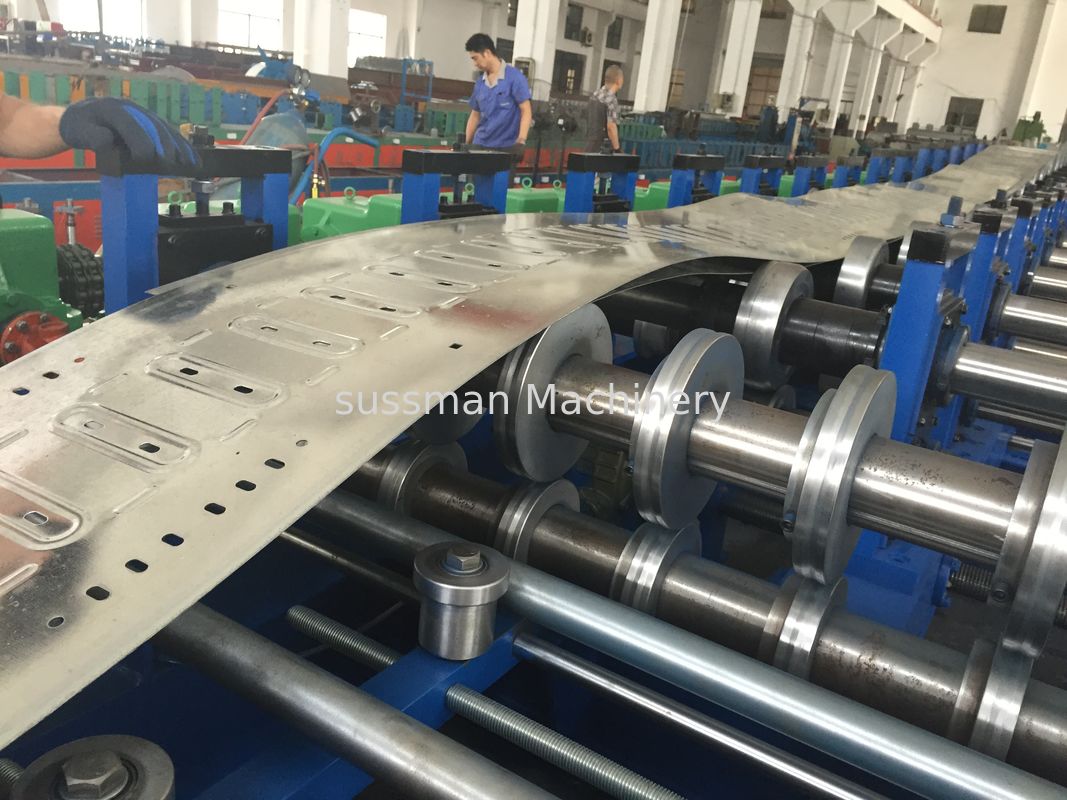

Galvanized Steel Perforated Cable Tray Roll Forming Euqipment Automatic Control PLC
Description:
A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural
system used to securely fasten or support cables and raceways." Cable trays are used to hold up and
distribute cables. Cable tray roll forming machine is special designed for its production.
Technical Data of cable tray making machine
Item NO |
|
|
1 |
Line speed |
0-6m/min |
2 |
Thickness of material |
1.5-3.0mm |
3 |
Raw material |
100mm-800mm galvanize steel Material yield strength: ≤G250Mpa |
4 |
Roller stations |
about 20 stations |
5 |
Roller material |
GCr15: model steel, HRC50-54 |
6 |
Shaft diameter |
Φ90mm ,material is 45# forge steel |
7 |
Transmission |
Gearbox 20 groups |
8 |
Total Motor Power |
35kw |
9 |
Main Motor Power |
22kw |
10 |
Hydraulic Motor Power |
7.5kw |
11 |
Hydraulic Cutting power |
5kw |
12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
13 |
Power Supply |
380V 50HZ 3phase (customized) |
14 |
Tolerance |
less than ±0.5mm |
15 |
Dimension |
16800mm× 2500mm × 1200mm |
16 |
Weight |
About 20 ton |
17 |
Frame |
H beam |
Main Components
Item Name: |
Cable mounting system Roll Forming Line |
Material: |
Galvanize steel |
Line Speed |
1.5-4m/min |
Material Coil width |
Per the design of product 100mm-800mm |
Power |
380V 3phase or design according to client's request |
Gram Weight: |
Around 20 tons |
Delivery time: |
100~120days |
MOQ: |
1 Set |
Warranty |
1 year 12 months |
Working Flow of Roll Forming line
Uncoiler—Feeding—Leveling—Punching&Cutting—Roll forming—Output table
Profile of product
Photo Gallery
