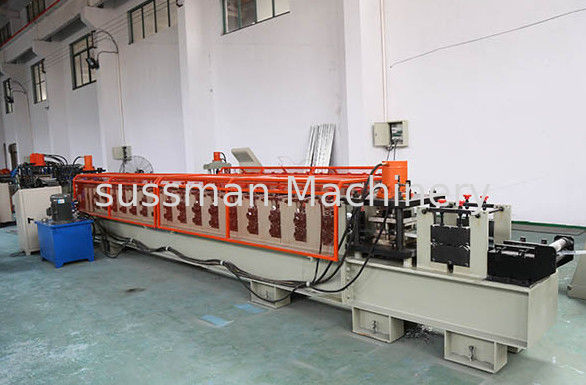

Galvanized Steel Sheet Roll Forming Machine Chain Drive High Efficiency
  • Galvanized Steel Sheet Roll Forming Machine Chain Drive High Efficiency
  • Galvanized Steel Sheet Roll Forming Machine Chain Drive High Efficiency

Galvanized Steel Sheet Roll Forming Machine Chain Drive High Efficiency

Place of Origin China
Brand Name SUSSMAN
Certification CE,SGS, ISO9001
Model Number SS-GS
Product Details
Name:
Vineyard Post Roll Forming Machine
Material:
Galvanized Steel Sheet
Material Thickness:
1.5-2mm
Forming Stations:
16 Stations
Roller Material:
45# Steel With Quenching 60mm Shaft
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
5-8m/min
Machine Weight:
About 5 Tons
Main Motor Power:
7.5 KW
Highlight:

plate rolling machine

,

tube forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
film+steel
Delivery Time
60-90 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Galvanized Steel Sheet Roll Forming Machine Chain Drive High Efficiency  ​





 Technical Parameter



Item NO



Description



Offered specification

1.0

 Roll forming machine



1.1

Rolling speed

5-8m/min(not include cutting time)

1.2

Rolling thickness

1.5-2mm

1.3

Raw material

Galvanized steel sheet

1.6

dimension

5500×800×500(mm)

1.7

Effective width

200mm

1.8

Roller stations

16 stations

1.9

Roller material

45# steel, coated with chrome, Quenching

1.10

Shaft diameter

Φ70mm ,material is 45# forge steel

1.11

Transmission

Chain drive

1.12

Material of chain

45# forged steel with frequency quenching, 12A

1.14

Material of cutting

Cr12Mov with quench HRC58-62°

1.15

Cutting Tolerance

6m+-1.5mm





 Main Components



S.N

Equipment name

Quantity

1

3T passive de-coiler

1 set

2

Leveling device 200mm

1 set

3

Hydraulic cutting device

1 unit

4

Main roll forming machine

1 set

5

Cutting holder

1 set

6

Hydraulic station

1 set

7

Control system ( including control box)

1 set

8

Out tables

2 units

9

Spare parts

package

10

Cutting dies

set

11

Punching die set

1 set



Working Flow of Roll Forming Machine

Decoiler----feedingwithguide---Punching----Rollforming----Cutting----Products collecting






Profile of product








Loading pictures






Transportation



All goods will be shipped to your country, containers number will be decided with how many machines would you choose



Installation of the machine



The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Sussman service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)

- Raw material,process material and fuels

- Raw material for test blocks

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.



Commissioning of the machine



The components of the machine are commissioned one after the other. At the end of the commissioning the machine is ready for production and is handed over.

The commissioning comprises:

- Commissioning by Sussman service technicians

- Training at the machine

- The following services are rendered

- Run up of the machine components

- Testing of all functions of the machine components

- Start of a fully automatic molding process

- Execution of machine acceptance

Delivery extent does not comprise of:

- Raw materials, process materials and consumables

- Raw material for test blocks

- Transport and lifting devices

The operators of the plant should be present during the commissioning in order to become familiar with the new machines.



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
