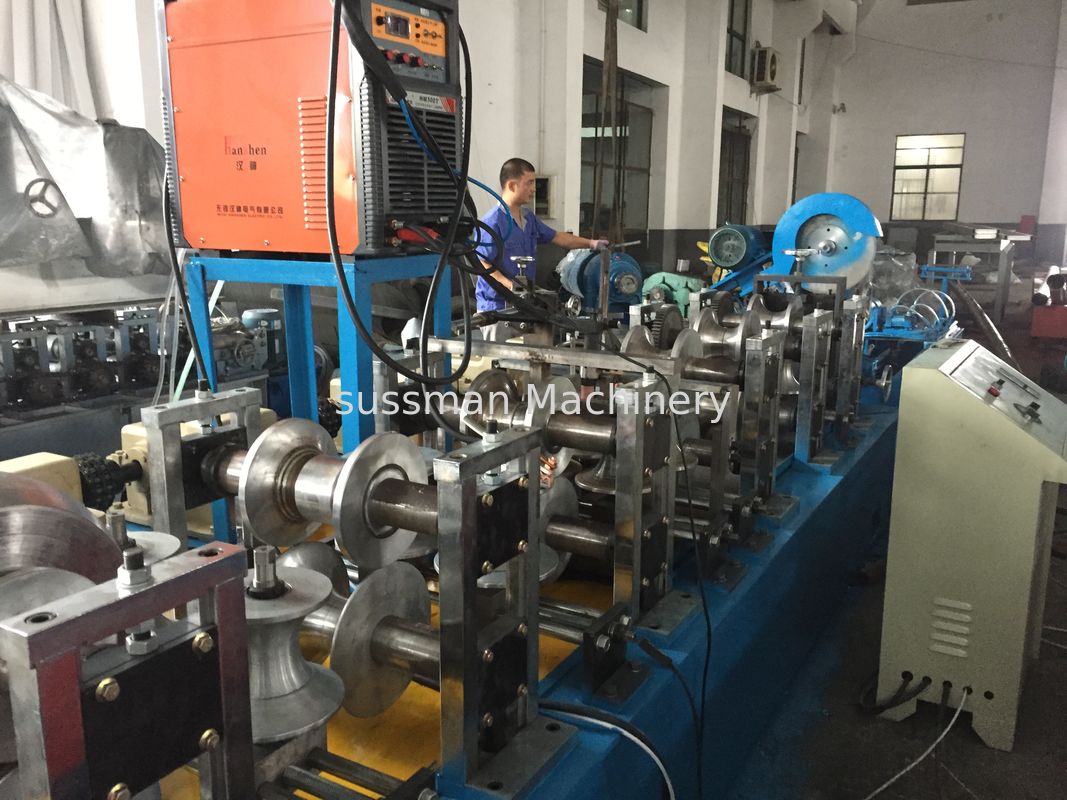

Welded Square Round Pipe Mill Roll Forming Machine Chain Drive
  • Welded Square Round Pipe Mill Roll Forming Machine Chain Drive
  • Welded Square Round Pipe Mill Roll Forming Machine Chain Drive
  • Welded Square Round Pipe Mill Roll Forming Machine Chain Drive
  • Welded Square Round Pipe Mill Roll Forming Machine Chain Drive

Welded Square Round Pipe Mill Roll Forming Machine Chain Drive

Place of Origin China
Brand Name SUSSMAN
Certification CE.SGS.ISO
Model Number SS-ST
Product Details
Raw Material Thickness:
1-2.5mm
Material:
Carbon Steel
Width Of Steel:
63-238mm
Out Diameter Of Coil:
800-1200mm
Inner Diameter Of Coil:
450-550mm
Max Weight:
2500kg
Machine Size:
Around 10M*1M*1.2M
Warrenty:
1 Year
High Light:

metal forming machine

,

plate rolling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
90-120 days after deposit
Supply Ability
5 sets per months
Product Description

Welded Square and Round Pipe Mill Roll Forming Machine Chain Drive High Speed Tube Production Line



General Information

   This equipment is specially used for producingΦ20-Φ76mm,δ0.8-2.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2.0mm). The composition of equipment is from decoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

 Pipe Technical Parameter


1.   Steel Sheet Thickness: 0.5-0.6mm (depend on requirement )
2.   Voltage: 380V, 50HZ, 3 phase
3.   Transmission way: single chain
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 3 ton passive decoiler
6.   Forming Speed: 12m/min
7.   Roller Groups: about 24 stations
8.   Roller Material: 45# grade steel, quenching treatment
9.   Roller Diameter: 180mm
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 11 Kw

 Pipe Main Components


Serial No. Commodity & Description Quantity
1 3T hydraulic un-coiler with 1 set
2 Feeding guiding 1 set
3 Levelling device 1 set
4 Roll forming machine 1 set
5 Cooling system 1 set
6 Straighten device 1 set
7 Fly saw cutting 1 set
9 Output table 1 set
10 Controlling system (including cabinet) 1 set
11 Gear box

1 set




Working Flow of Round Pipe


Decoiler ---- Feeding --- Levelling --- Cutting --- Roll forming --- Fly saw cutting --- Run out table

Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 0


Profiles of Square Pipe

Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 1Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 2


 Photo Gallery
Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 3Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 4Welded Square Round Pipe Mill Roll Forming Machine Chain Drive 5



Loading pictures

Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email

Quality Control
1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.


FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
