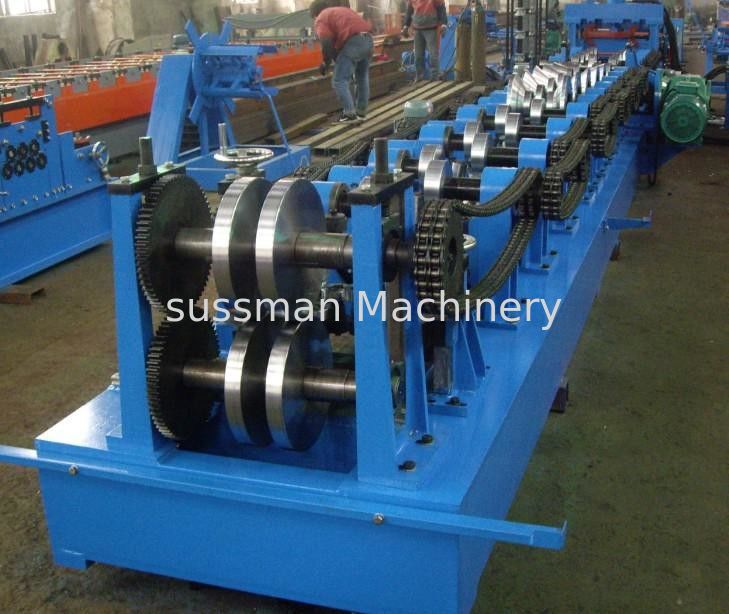

Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed

China Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed supplier
Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed supplier Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed supplier Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed supplier

Large Image :  Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed

Product Details:

Place of Origin: Wuxi, China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO
Model Number: RF-CZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: film and steel for exporting
Delivery Time: 60 days after deposit
Contact Now
Detailed Product Description
Material Thickness: 2-4mm Forming Speed: 0-12m/min
Material: Galvanized Steel Sheet Forming Stations: 16 Stations
Place Of Orgin: Jiangsu, China Cutting Blade Material: Cr12Mov
Main Motor Power: 15Kw Hydraulic Cutting Power: 4Kw

Fully Automatic HighSpeed CE Certificated CZ Purlin Cold Roll Forming Machine

Technical Parameter


Item NO


Description


Offered specification

1.0 Roll forming machine
1.1 Rolling speed 0-12m/min(not include cutting time)
1.2 Rolling thickness 2-4.0mm
1.3 Raw material Galvanized steel sheet
1.6 dimension 6500×600×800(mm)
1.7 Effective width 100-600mm
1.8 Roller stations 16 stations
1.9 Roller material 45# steel, coated with chrome, Quenching
1.10 Shaft diameter Φ60mm ,material is 45# forge steel
1.11 Transmission Gearbox
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Cutting Tolerance 6m+-1.5mm



Main Components


No Name quantity
1 3 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Cutting device 1 unit
6 Out tables 2 units


Working Flow of Roll Forming Machine
feedingwithguide—Rollforming——Cutting—Products collecting
80-300mm Width Adjustable CZ Purlin Roll Forming Machine High Speed Fully Automatic
Standard Profile and Drawing of product






Loading pictures



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email





FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
