Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching
  • Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching
  • Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching
  • Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching

Automatical C Z Purlin Roll forming Machine With Servo Feeding and Punching

Place of Origin Wuxi, China
Brand Name sussman
Certification CE, SGS, ISO
Model Number RF-CZ
Product Details
Product Specification:
C80-300
Material Thickness:
2-3mm
Roller Stations:
15 Stations
Highlight:

c z purlin roll forming machine

,

z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
negotiable
Packaging Details
Film nad steel
Delivery Time
50 days after deposit
Payment Terms
TT
Supply Ability
10 sets/month
Product Description

Automatical C U Purlin Roll forming Machine With Servo Feeding and Punching









1. Technical Parameter

  • Products specification: C80-300. Thickness: 2-3mm. Yield strength: 250Mpa max.
  • Running speed: 0-12m/min.
  • Main shaft material: 45# steel, Q&T treatment
  • Main axis diameter: ¢75mm
  • Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity: HRC58-62.
  • Roller groups: 15 groups main rollers
  • Levelling roller: 7 rollers levelling device
  • Main motor power: 11KW;
  • Hydraulic station motor power: 5.5KW
  • Punching station: 4 punch device
  • Electrical control system: Whole line adopted PLC control, Panasonic PLC.
  • Cutting method: Hydraulic powered, automatically cut to length after roll forming
  • Cutting mold material: Cr12 quenching treatment
  • Uncoiling: by 3ton passive uncoiler
  • Machine dimension: 11.5m L X 1.2 m W X 1.0 m H
  • Machine weight: about 8 tons.



2. Machine List



S.N Equipment name Quantity
1 3T manual uncoiler 1 set
2 Levelling device 1 unit
3 Servo feeding 1 unit
4 Pre-cutting 1 unit
5

Punching die set

For bottom notches, dimple screws holes, round holes and top notches

4 units
6 Main roll forming machine 1 set
7 Main drive 1 unit
8 Cutting unit 1 set
9 Hydraulic station 1 set
10

Control system

( including control cabinet)

1 set
11 Out put rack

1 sets







3. Profile Drawing

Automatical C U  Purlin Roll forming Machine With Servo Feeding and Punching

Automatical C U  Purlin Roll forming Machine With Servo Feeding and Punching





4. Processing Flow Chart

Uncoiling –– infeed guiding –– levelling–– servo punching–– cutting to length rollforming –– out put product

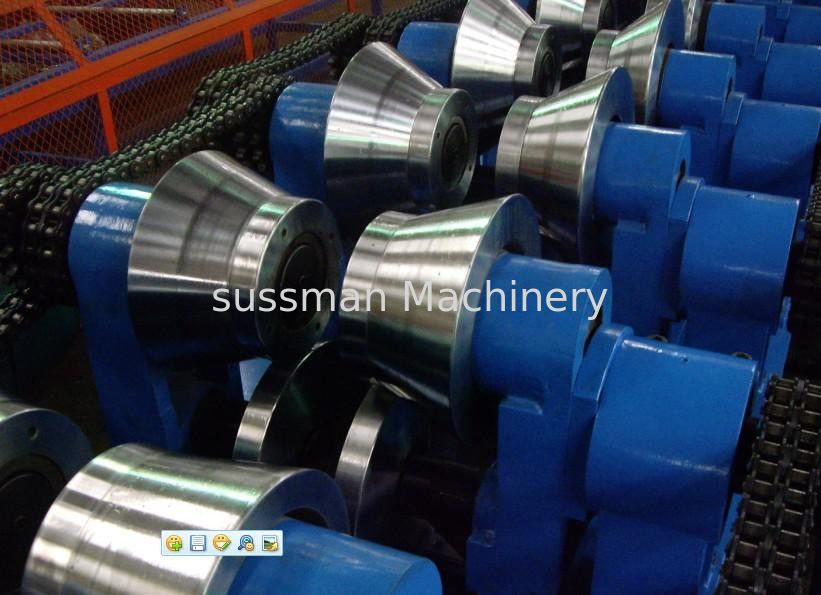

5. Machine Photo



Automatical C U  Purlin Roll forming Machine With Servo Feeding and Punching

Automatical C U  Purlin Roll forming Machine With Servo Feeding and Punching





6. Loading Pics
12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm 12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm

12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm12 Roller Stations Metal Shutter Door Roll Forming Machine Thickness 0.7mm-1.2mm



7. Company Introduction



Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
