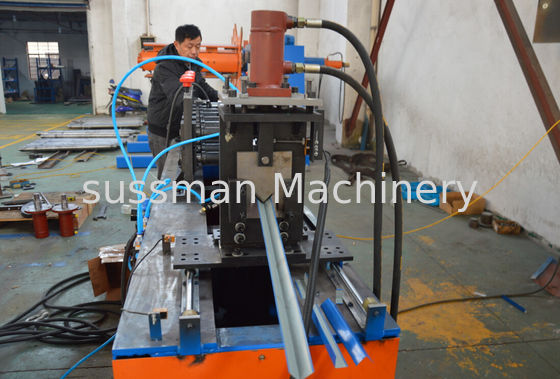

18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine

18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine
18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine 18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine 18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine

Large Image :  18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SS-CP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60 working days after deposit
Supply Ability: 10 sets/month

18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine

Description
Material Thickness: 0.5-3mm Forming Speed: 15m/ Min
Forming Stations: 18 Stations Material: Galvanized Steel
Roller Material: Cr40 Steel With Quenching Power Supply: 380V, 50Hz, 3Phase
High Light:

c purlin roll forming machine

,

c z purlin roll forming machine

Automatic C Type Purlin Roll Forming Machine







Technical Parameter







Items

Specifications



Material of coil

Material Thickness

0.5-3mm





Un Coiler

3 tons manual



Forming system

Rolling Speed

10-15 m/min





Roller Stations

18 stations





Roller Material

Gcr15 coated with chrome





Maim Motor Power

11kw





Motor cutting Power

5.5kw



Cutting system

Material Of Cutting

CR12mov with quench treatment





Hardness

HRC58-62





Tolerance

+-1.5mm





Cutting blades

3 sets

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require





Control System

PLC (Panasonic) as list in the note





Weight

12 tons





Way Of Drive

1.5 inch double chain







 Machine List




Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units








Advantage of Machine





1. Reasonable Price



2. High Quality



3. 12 Months Warranty



4. More Than 10 Years Experience



5. Durable



6. Reliable







Working Flow of Roll Forming Machine



A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)


B.Servo Feeding Applicator............................................To feed the material accurately


C.Hydraulic/Press Punching...........................................To punch as requirements


D.Roll Forming Unit.........................................................To roll form as requirements


E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)


F.Output Table................................................................Support the finished products



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting





18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine 0









Profile of product







Manufactorer on promotion fully automatic C purlin roll forming machineManufactorer on promotion fully automatic C purlin roll forming machine

Manufactorer on promotion fully automatic C purlin roll forming machine







Photo Gallery





18 Stations CZ Purlin Roll Forming Machine , C Type Purlin Roll Making Machine 4





Loading pictures



Manufactorer on promotion fully automatic C purlin roll forming machine









Company Profile



     Suhang Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

      The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.

      Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
