Product Details:
|
| Pwer Supply: | 380V, 50Hz, 3Phase ( Or Customized) | Machine Weight: | About 8 T |
|---|---|---|---|
| Width Of Coil Plate: | 350mm-1250mm | Hydraulic Power: | 4 KW |
| Color Of Machine: | Standard Green | Dirve System: | Chain |
| High Light: | Steel Slitting Machine,Metal Slitting Machine |
||

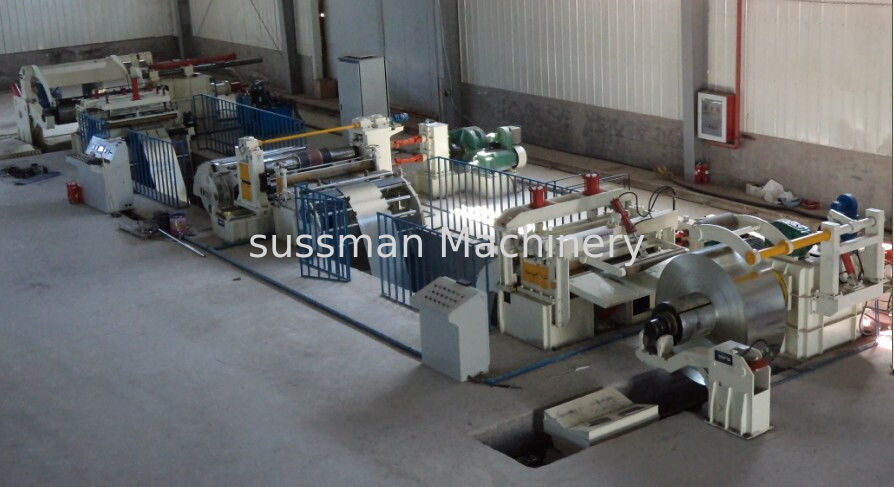

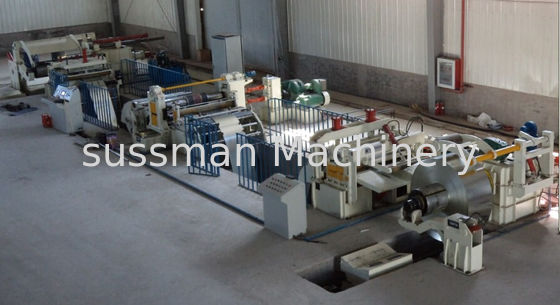

Steel coil cutting to length line machine
Technical Parameter
|
NO. |
Name |
Unit |
Parameters |
| 1 | coil cutting machine | ||
| 2 | Materials | Cold rolled steel | |
| 3 | Thickness | mm | 0. 12-2.5 |
| 4 | Width | mm | 350--1250 |
| 5 | Coil I.D. | mm | 520 |
| 6 | Coil O.D. | mm | ≤1250 |
| 7 | Weight | T | 8 |
| 8 | Slitting blade shaft | mm | Φ120 |
| 9 | Blade specification | mm | Φ220×Φ120×10 |
| 10 | Material of blade | 6CrW2Si | |
| 11 | Line speed | m/min | ≤30 |
| 12 | Power of decoiler | KW | 11 |
| 13 | Power of slitting machine | KW | 15 |
| 14 | Power of recoiler | KW | 30 |
| 15 | Leveling roller diameter | 55mm | |
| 16 | Width tolerance | ≤±0.05 mm | |
| 17 | The direction of whole line | from right to left, the operate table faces the machines | |
| 18 | Power | 380V/3Ph/50Hz( Customized) | |
| 19 | Operation people | 1 technician and 1 general worker | |
| 20 | Color | green ( Customized) |
Main Components
| No. | Name | Quantity |
| 1 | Manual expand and shrink de-coiler | 1 set |
| 2 | Slitting machine | 1 set |
| 3 | Scrap winder | 1 set |
| 4 | Tension stand | 1 set |
| 5 | Mechanical recoiler | 1set |
| 6 | Straightener | 1 set |
| 7 | Cutter | 1 set |
| 8 | Receivable tacle | 1 set |
| 9 | Electrical control system |
1 set |
Advantage of machine
1. Manufacturer Reasonable Price
2. More Than 10 Years long working life
3. Durable
4. Reliable
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
Working Flow of Roll Forming Machine
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure for more than 8 years.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
