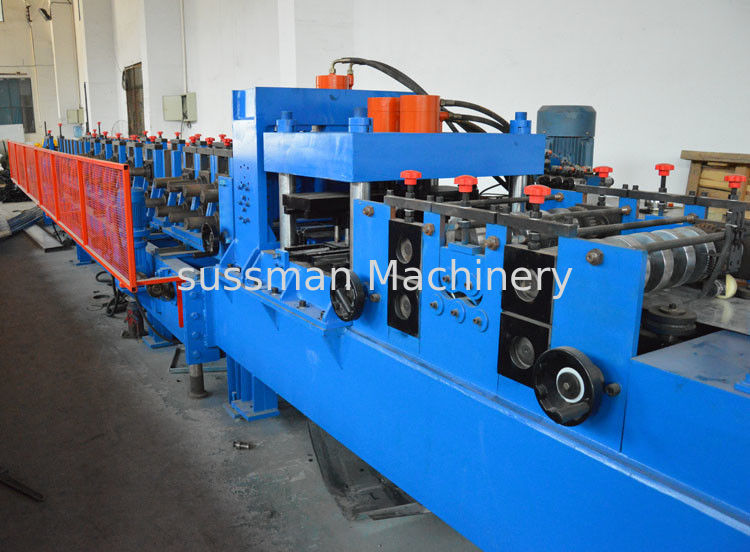

380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes

380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes
380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes 380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes

Large Image :  380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes

Product Details:
Place of Origin: China
Brand Name: Sussman
Certification: SGS.CE.ISO
Model Number: SM-CP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: film and steel
Delivery Time: 75days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 10 sets per month

380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes

Description
Processing Material: GI Material Thickness: 1.5-2.0mm
Roller Stations: 13 Stations Main Power: 11KW
Hydraulic Stations Power: 5.5KW Power Supplier: 380V, 50HZ,3 Phase
Weight: 4 Tons
High Light:

c z purlin roll forming machine

,

z purlin roll forming machine

380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes



Specification


1) High speed work, perfect finish
2) European quality, work smoothly





 C Purlin Technical Parameter






Items

Specifications

Material of coil

Material Thickness

1.5-2.0mm

Forming system

Rolling Speed

10-12 m/min

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft



Hydraulic cutting Power

5.5 kw

Cutting

system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ, 3phase



Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand



Weight

About 4 tons



Way Of Drive

1 inch single chain



Size of machine

Length 7300mm* Width 800mm* Height 1000mm





Main Components



3 ton passive de-coiler
Feeding with guide
Mail roll forming machine
PLC control box
Hydraulic station

Punching
Our tables





Product line


Uncoiling—Feeding&Leveling—Rollforming—Cutting—Products collecting







Profile and Drawing Of Product









Loading pictures



All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film
All parts inside container will be fixed very well which can keep safety and fixed for long time sea transportation


380V C Shape Purlin Roll Forming Machine With Automatic Punching Holes 1





Our After-Sales Service Commitments



Sussman Machinery hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
