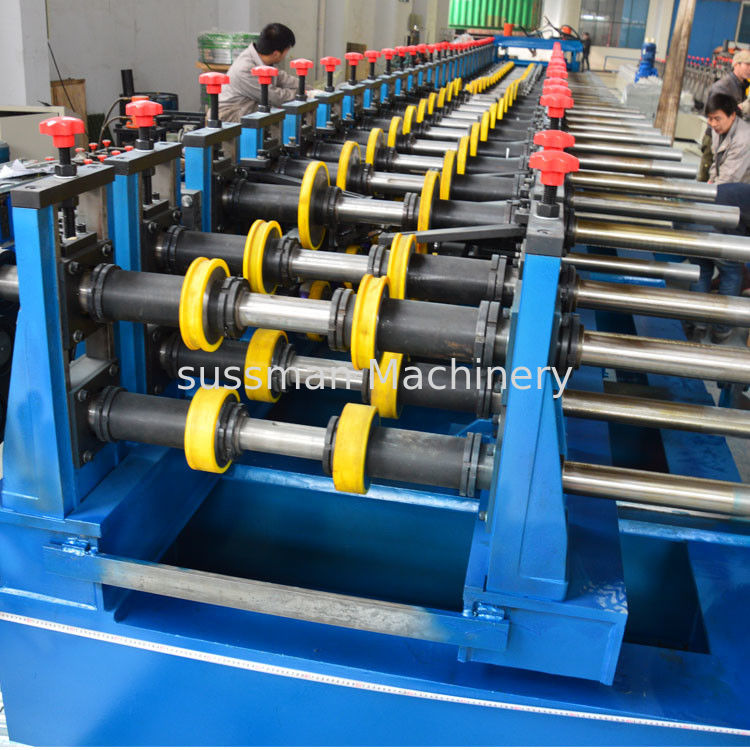

Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer

Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer
Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer
Basic Information
Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE,SGS,ISO
Model Number: SM-CT
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel wire
Delivery Time: 90 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Thickness: 1.5-2.0mm Galvanized Steel Or Blank Steel Width Of The Profile: 100-600mm Adjustable
Main Power: 22KW With Reducer Rolling Speed: 4-5m/min
Electric Source: 380V, 50HZ,3 Phase Roller Stations: 20 Stations
Cutting: Hydraulic Cutting Cr12mov Hydraulic Station: 7.5KW
PLC: Panasonic, Japan Length: As You Want
High Light:

metal forming machine

,

cable tray machine

22KW With Reducer Metal Cable Chanel Forming Machine Chain Driven PLC Control




Technical Parameter


Decoiler

1) Material width:460-520mm
2) Material weight:5000kg
3)
Max Coil Width: 1250mm

4) Expansion: hydraulic decoiler

Level

1) Working rolls:  up 3/down 4
2) Flatting bound: Material thickness 1-2mm
3)
Max Leveling Raw Material width: 1000mm

Feeding

Feeding Servo feeding motor: about 7.5KW,Yaskawa(Japanese Brand)
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm.

The servo motor can control the speed, and can accept the input signal, and react quickly, and performance well

The touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

Main roll forming machine

1) Driven Type: 2'' chain
2) Forming frame: 20 sets
3) Forming variety: Bridge frame
4) Material max width: 860mm
5) Material max thickness: ≤ 2.0mm
6) Forming width: 100-600mm
7) Forming height: 50-100mm
8) The diameter of the roller axis: 80mm
9) Roll mould material: Gcr15, quenching treatment: HRC58-62
10) Speed:4-5m/min

Hydraulic cutting

The cutter blade material: Cr12mov HRC58-62 degree

Material of blade: CR12with heat treatment
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Length measuring: Automatic length measuring
Tolerance of length: 6m+/- 1.5mm

Control system

1)Type: PLC Frequency Control System with touch screen
2)PLC Brand: Japan Panasonic
3)Encoder Brand: Omron

4)Length Error: ±2mm

Output table

1)It is simple and used to load finished product.

2)Length:6m



Main Machine



Name

Quantity

5 tons hydraulic de-coiler

1 set

Leveling &Feeding device

1 set

Roll Forming Machine 1 set

Punching Press machine

1 set

Punching moulds

1 set

Pre-cutting

1 set

PLC Control System 1 set

Out tables

1 set

Spare parts

1 package





We can produce machine as different profile drawing



Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer 0



Customer's testing



Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer 1Metal Chanel Roll Forming Machine Chain Driven PLC Control 22KW With Reducer 2

Tag:

cable tray machine,

plate rolling machine,

metal forming machine
