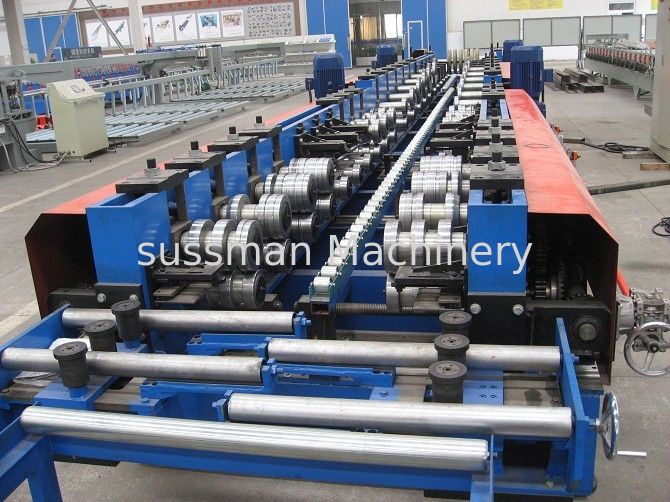

13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting

13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting
13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting
Basic Information
Place of Origin: Wuxi
Brand Name: Sussman
Certification: CE
Model Number: RF
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Cutting: Hydraulic Machine Size: 13m*1.4m*1.4m
Control System: PLC Usage: Cable Tray
Driven: Chain Roller Material: Gcr15
Height Of Profile: 50-100mm Width Of The Profile: 100-600mm
High Light:

cable tray machine

,

plate rolling machine

Cable Tray Cover Roll Forming Equipment with Hydraulic Punching and Cutting



Profile drawing and punching layout
13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 0



S.N Equipment name Quantity
1 5T hydraulic un-coiler 1 set
2 Coil Levelling device 1 set
3 Hydraulic Punching 1 set
4 Hydraulic Pre-cutting 1 set
5 Main roll forming machine 1 set
6 Hydraulic station 1 set
7 Control system ( including control box) 1 set
8 Out tables 2 units
9 Spare parts 1 package



Profiles according to the client’s drawings
Technical data
Technological process:
Uncoiling—feedingwithguide—hydraulicpunching —Cutting—Rollforming—Products collecting



  Items Specifications Remarks
Materials Width of the profile 100-600mm
Thickness 1-2mm galvanized coils and black steel
Height of the profile 50-100mm
Un Coiler 5 tons hydraulic
Punching Way Hydraulic punching 1 set
Forming system Rolling Speed 5-6m/min
Roller Stations About 20stations
Roller Material

Gcr15with quenching



Shaft Dia 90mm
Maim Motor Power 15 kw
Hydraulic cutting Power 7.5 kw

Cutting
system

Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase
Also can satisfy Customer’s require


Control System PLC (Panasonic) as list in the note
  Weight About 18 tons
  Profile width and height adjustment Control by the motor
  Way Of Drive 1.2 inch single chain
  Size of main machine About Length 13000mm* Width 1800mm* Height 1000m


Details of each composition:
1. 5 ton Hydraulic decoiler

2. Feeding and leveling device

  • 7 rolls leveling, 3 rolls up and 4 rolls down
  • Diameter is Ø 80mm, chrome and HRC60 heat treatment to secure the smooth surface
  • Leveling Raw Material thickness:1.0-2.0mm
  • Max Leveling Raw Material width: 800mm

3. Cutting way:
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) Tolerance of length: + 1.5mm
(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.

4. Out Tables:
Length: 3m
Quantity: 2 units

5. Control Box:

  • (1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
  • (2) Length & quantity measurement automatically;
  • (3) Length & quantity controlled by PLC,
  • (4) Length inaccuracy can be amended easily.
  • (6). Control panel: Button-type switch and touch screen
  • (7) The language in the touch screen: English and Chinese
  • (8) Unit of length: millimeter (switched on the control panel)
  • (9) PLC Panasonic



  • Spare parts
  Name Number
Tools Feeler gauge 1
Size spanner 1
Inner hexagon spanner 1
Clamp 1
Standard spanner 1
Shifting spanner 1
Slotted screwdriver 1
Other accessories Chain 6 pieces
Chain connector 20 pieces
Bearing (Haerbin) 10 pieces
Encoder Omron 1



13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 1



13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 2



13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 3





13m*1.4m*1.4m Cable Tray Roll Forming Machine with Hydraulic Punching and Cutting 4





Our After-Sales Service Commitments



1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email





FAQ



1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
