CZ Purlin Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CZ |
Automatic Adjustment CZ Purlin Roll Forming Machine With Hole , Chain Drive Pre Cutting
|
Material of coil
|
Material Thickness
|
1.5-3.0mm
|
|
De-coiler
|
Weight
|
3 ton manual decoiler
|
|
Forming system
|
Rolling Speed
|
0-12 m/min
|
|
Roller Stations
|
About 18 stations forming
|
|
|
Roller Material
|
Gcr15 Steel with quenching
|
|
|
Shaft Material
|
45# Steel Diameter 76mm shaft
|
|
|
Main Motor Power
|
11KW
|
|
|
Hydraulic cutting Power
|
7.5KW
|
|
|
Cutting system
|
Material Of Cutting
|
CR12 with quench treatment
|
|
Hardness
|
HRC58-62
|
|
|
Tolerance
|
+-1.5mm
|
|
|
Cutting blade
|
1 set of cutting blade
|
|
|
Electrical control system
|
Electric Source
|
380V, 50HZ, 3phase
|
|
Control System
|
PLC with touch screen Japanese Panasonic and Yaskawa Brand
|
C Z Purlin Technical Parameter
|
Equipment name
|
Quantity
|
|
3T passive uncoiler
|
1 set
|
|
Feeding with guide
|
1 set
|
| Hydraulic pre-cutting |
1 set
|
| Hydraulic pre-punching |
1 set
|

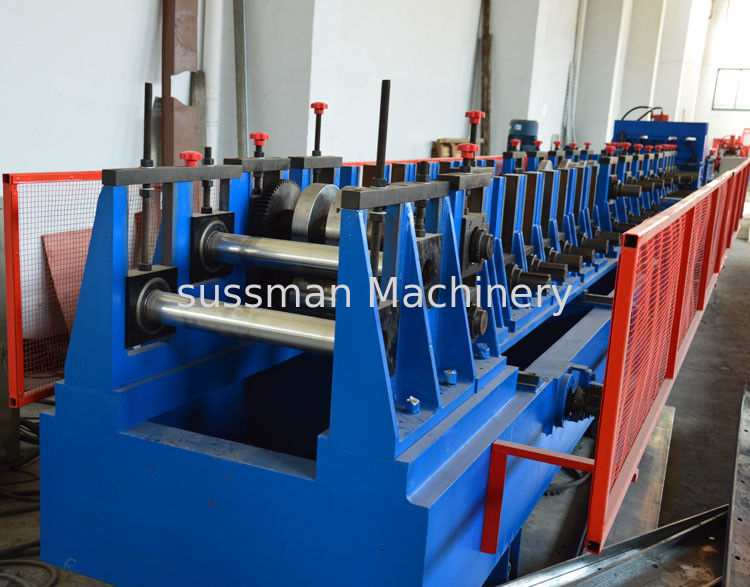

| Main roll forming machine |
1 set
|
|
Hydraulic station
|
1 set
|
|
Control box
|
1 set
|
|
Out tables
|
2 units
|
Working Flow
Decoiler—feeding with guide—punching—cutting— roll forming—run out table
Each part of machine
1. 3T Passive De-coiler
Diameter: 460-520mm expansion.
Capacity: 3000kg per mandrel
Max Coil Width: 500mm
2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up ,it can guarantee that the products are neat, parallel and everything is uniformity.
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Pre -Punching and pre-cutting device
Share one Hydraulic station with Hydraulic Cutting Device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine.
Cutting blade material:Cr12
Hydraulic station pressure: 20 MPa
4.Control Box: Panasonic Japan Brand
Adopted PLC , transducer, touch panel from Japan to ensure high speed with stability, precision and lifetime. Other electric element are Schneider
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically.
(3) Length & quantity controlled by PLC.
(4) Length inaccuracy can be amended easily.
(5). Control panel: Button-type switch and touch screen
(6) The language in the touch screen: English and Chinese
5. Terms
Payment type:30% T/T prepaid and 70% TT balance should be paid before loading
Delivery time:60days after receving advance payment.
Guarantee period: 12 months free service/ pay service all the machine life
Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
If there are any other customized machines that you are interested in, pls contact us for further discussion. We will provide you for the most suitable machine solution for your market.
