Fully Automatic Cable Tray Roll Forming Machine
  • Fully Automatic Cable Tray Roll Forming Machine
  • Fully Automatic Cable Tray Roll Forming Machine
  • Fully Automatic Cable Tray Roll Forming Machine

Fully Automatic Cable Tray Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Suhang
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Cable Tray Width:
100-800mm
Main Motor Power:
22kw
Hydraulic Cutting Power:
7.5Kw
Roller Material:
GCr15
Drive Way:
2 Inches Chain
Cutting Blade Material:
Cr12Mov
Roller Station:
20 Stations
Forming Speed:
2-4m/min
Highlight:

metal forming machine

,

plate rolling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire.
Delivery Time
60 working days after deposit
Supply Ability
10 sets/month
Product Description

Cable tray roll forming machine​


 Main Specifications Of Cable Tray Roll Forming Machine

  • Cable tray width: 100-600mm
  • Working Speed: 0-10m / min
  • Forming stations: according to different profiles,
  • Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome, about 20 stations
  • Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining
  • Main Power with reducer: 15KW WH Chinese Famous
  • Cutting: Hydraulic Cutting Cr12mov
  • Material of Cutting Knife: Cr12Mov, Quench HRC58-62
  • Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
  • The whole machine is controlled by industry computer-PLC.
  • PLC--Panasonic, Japan
  • Touch Screen—Panasonic, Japan
  • Drive way: Chain drive, with 1.5 inch 20A Chain



Machine Component List


5 Ton Hydraulic De-coiler1 set
Levelling device1 set
Servo Feeding device1 set
Press Machine JH-2001 set
Main Roll Forming Machine 1 set
PLC Control box1 unit
Hydraulic Station1 unit
Cutting device1 unit
Punching mould1 unit
Out table2 units



Main Components


Item Name:Cable mounting system Roll Forming Line
Material:GI
Line Speed2-4m/min
Material Coil widthPer the design of product
Power380V 3phase or Per the client's request
Gram Weight:Around 20 tons
Delivery time:100~120days
MOQ:1 Set
DeliveryFCL
Warranty1 year





  Cable Tray Profile Drawings
Fully Automatic Cable Tray Roll Forming Machine 0



Fully Automatic Cable Tray Roll Forming Machine 1



Fully Automatic Cable Tray Roll Forming Machine 2


Fully Automatic Cable Tray Roll Forming Machine 3

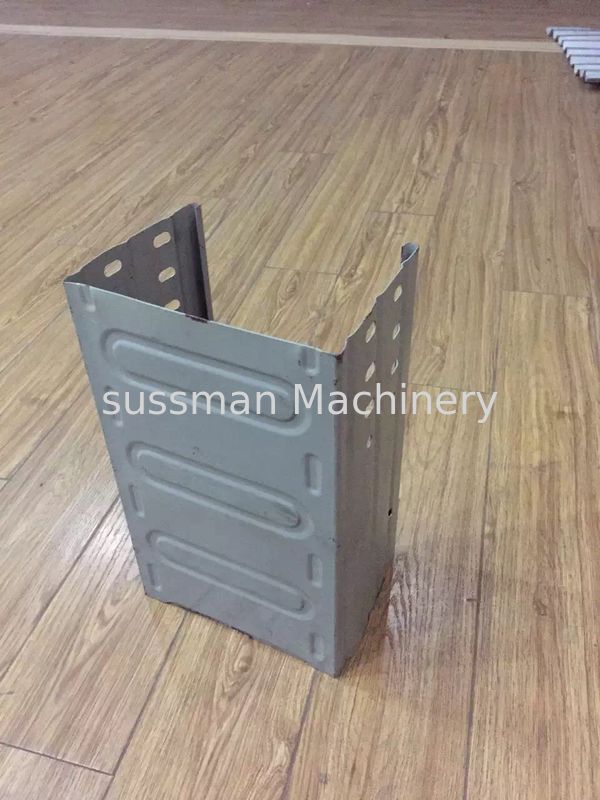

Cable Tray Product Photo

Fully Automatic Cable Tray Roll Forming Machine 4


Fully Automatic Cable Tray Roll Forming Machine 5


Fully Automatic Cable Tray Roll Forming Machine 6


Fully Automatic Cable Tray Roll Forming Machine 7


Fully Automatic Cable Tray Roll Forming Machine 8


  Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table
Fully Automatic Cable Tray Roll Forming Machine 9


Advantage for Roll Forming Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Afrer-sales service


Application

In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
