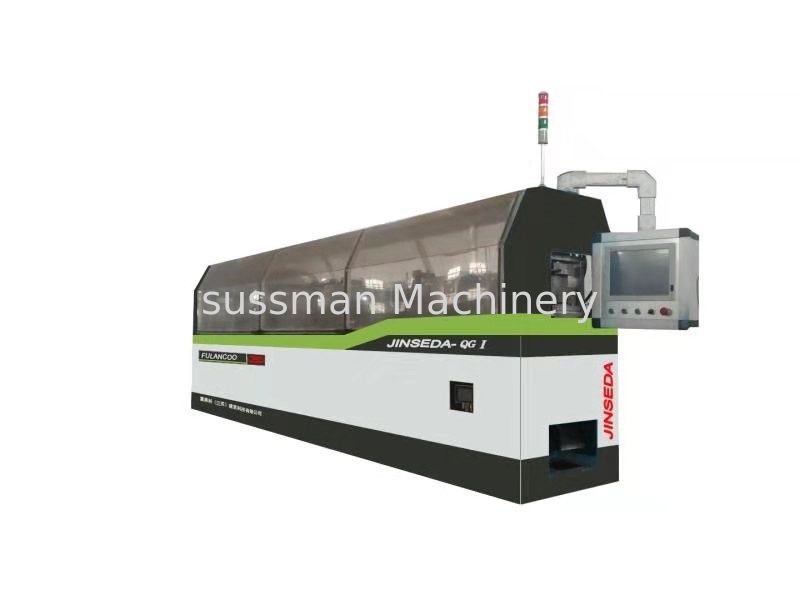

0.3-1.0mm galvanized coils Drywall Roof Steel Frame Roll Forming Equipment 12 Stations
1. Technical Parameter
Items | Specifications | Remarks | |
Material of coil | Material Thickness | 0.27-1mm galvanized steel | |
De-coiler | Weight | 3 ton manual | |
Forming system | Rolling Speed | 0-15m/min | |
Embossing | At sides | ||
Roller Stations | About 13 stations forming | ||
Roller Material | Cr40 Steel with quenching | ||
Shaft Material |
45# Steel Diameter 60mm shaft
|
||
Maim Motor Power | 7.5 kw | ||
Hydraulic cutting Power | 4 kw | ||
Cutting system |
Material Of Cutting | CR12 with quench treatment | |
Hardness | HRC58-62 | ||
Tolerance | +-1.5mm | ||
Cutting blade | 1 set of cutting blade | ||
Electrical control system | Electric Source |
220V, 60HZ,3 phase
|
|
Control System | PLC Japanese Panasonic and Yaskawa Brand | ||
Weight | About 3 tons | ||
Way Of Drive | 1 inch single chain | ||
Size of machine | Length 6500mm* Width 600mm* Height 800m |
2. Working Flow
Feeding with guide—Punching-----Rollforming——Cutting—Products collecting
3. Machine Components
3 tons manual decoiler | 1 set |
Feeding with guide | 1 set |
Cutting device | 1 set |
Main roll forming machine | 1 set |
PLC control box | 1 unit |
Hydraulic station | 1 unit |
Out tables | 2 units |
4. Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
