380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations
  • 380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations
  • 380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations
  • 380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations
  • 380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations

380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations

Place of Origin WUXI, CHINA
Brand Name Sussman
Certification CE
Model Number SS - DW
Product Details
Rolling Speed:
0-10m/min
Embossing:
At Sides
Roller Stations:
About 13 Stations Forming
Roller Material:
Cr40 Steel With Quenching
Shaft Material:
45# Steel Diameter 60mm Shaft
Motor Power:
7.5 Kw
High Light:

metal stud and track roll forming machine

,

metal stud forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD + ( 10000 - 18500) +SET
Packaging Details
Standard film
Delivery Time
60 DAYS
Payment Terms
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 + SETS+ PER MONTH
Product Description



380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations



Advantages



1. We are design the one unit one machine, the control box and the hydraulic station for the cutting are all



put under the bedding, when you get the machine, the machine is one unit, no need to assemble and



connect the complicate cable of the machine, you only need to connect one main cable, then the machine



is working.



2. the touch screen is hang over, it is not under the floor.



3. the accuracy of our machine is -/+0.5-1mm.



4. the roller is solid and electroplated, which will not have rust.



5. the material are all national standard and cutter will not have burr.





Machine list









Machine list

3 ton passive de-coiler



1 set


Main roll forming machine



1 set


Punching device



1 set


Cutting device



2 sets


PLC Control box



1 unit


Hydraulic station



1 unit


Out table



2 sets


Safety cover



1 unit



Parameters





Items



Specifications
Material of coil

Thickness



0.27-1mm galvanized steel
De-coiler

Weight



3 ton manual
Forming system

Rolling Speed



0-10m/min


Embossing



At sides


Roller Stations



About 13 stations forming


Roller Material



Cr40 Steel with quenching
  Shaft Material

45# Steel Diameter 60mm shaft





Motor Power



7.5 kw


Hydraulic cutting Power



4 kw



Cutting

system

Material of cutting CR12 with quench treatment


Hardness



HRC58-62


Tolerance



+-1.5mm


Cutting blade



1 set of cutting blade
Electrical control system Electric Source

380V, 60HZ,3 phase





Control System



PLC


Weight



About 3 tons


Way Of Drive



1 inch single chain


Size of machine



Length 5500mm* Width 600mm* Height 800m

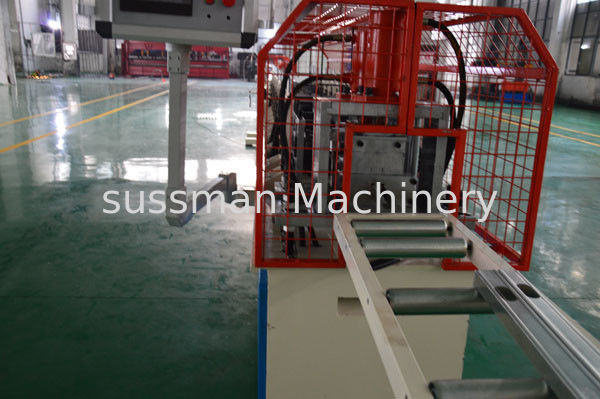

Machine pictures



380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations 0



380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations 1



380V 60HZ 3 Phase Stud And Track Roll Forming Machine With 13 Stations 2
