Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | WUXI, CHINA |
| Brand Name | Sussman |
| Certification | CE |
| Model Number | SS - OM |
13 Stations Omega Stud And Track Roll Forming Machine About 5000 × 435 × 1000 Mm
Advantages
1. We are design the one unit one machine, the control box and the hydraulic station for the cutting are all
put under the bedding, when you get the machine, the machine is one unit, no need to assemble and
connect the complicate cable of the machine, you only need to connect one main cable, then the machine
is working.
2. the touch screen is hang over, it is not under the floor.
3. the accuracy of our machine is -/+0.5-1mm.
4. the roller is solid and electroplated, which will not have rust.
5. the material are all national standard and cutter will not have burr.
6. the board are all milled and polished.
7. the roller is solid and galvanized
8. our machine is a little heavy than others, because it have more stands
Machine list
|
Machine list |
3 ton passive de-coiler
|
1 set |
|
Main roll forming machine
|
1 set | |
|
Punching device
|
1 set | |
|
Cutting device
|
2 sets | |
|
PLC Control box
|
1 unit | |
|
Hydraulic station
|
1 unit | |
|
Out table
|
2 sets | |
|
Safety cover
|
1 unit |
Technical Data
|
Item NO |
Description |
Offered specification |
| 1.1 |
Rolling speed
|
0-12m/min(not include cutting time) |
| 1.2 |
Rolling thickness
|
0.4 mm to 1.0mm Galvanized coils |
| 1.3 |
Main motor
|
5.5 KW |
| 1.4 |
PLC
|
Delta Brand |
| 1.5 |
Dimension
|
About 5000×435×1000(mm) |
| 1.6 |
Voltage
|
220V, 60HZ, 3phase |
| 1.7 |
Roller stations
|
About 13 stations |
| 1.8 |
Roller material
|
45# high grade steel with quenching |
| 1.9 |
Shaft diameter
|
Φ50mm ,material is 45# forge steel |
| 1.10 |
Transmission
|
By chain One inch chain |
| 1.11 |
Material of chain
|
45# forged steel with frequency quenching |
| 1.12 |
Material of cutting
|
Cr12Mov with quench HRC58-62° |
| 1.13 |
Tolerance
|
6m+-1.5mm |

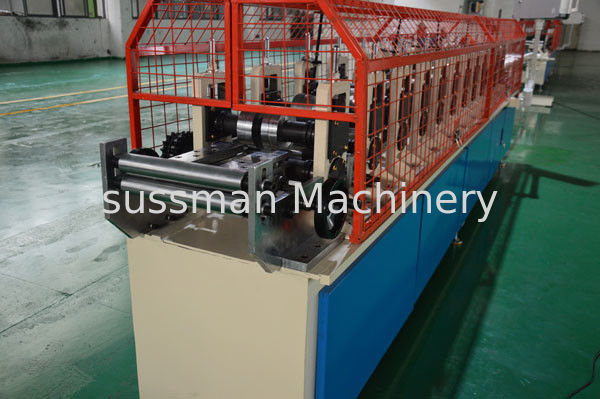

Machine pictures
Application
Steel building is a metal structure fabricated with steel for the internal support and for exterior cladding, as
opposed tosteel framed buildings which generally use other materials for floors, walls, and external
envelope.
