Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
G550 Steel Framing Studs And Track Roll Forming Machine With 13 Rollers
1. Technical Parameter
| Item NO |
Description |
Offered specification |
| 1.1 | Roller stations | About 13 stations |
| 1.2 | Voltage | 380V, 50HZ, 3phase |
| 1.3 | Raw material | Galvanized coils |
| 1.4 | Rolling thickness | 0.5-1.0mm |
| 1.5 | Dimension | 4500×800×1200(mm) |
| 1.6 | Main motor power | 7.5kw |
| 1.7 | Roller material | 45# steel, coated with chrome, Quenching |
| 1.8 | Shaft diameter | Φ60mm ,material is 45# forge steel |
| 1.9 | Transmission | By chain 1 inch |
| 1.10 | PLC | Delta brand |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | +-1.5mm |
| 1.14 | Weight | 3 Tons |
2. Machine Components
| 3Tdecoiler | 1 set |
| Hydraulic Cutting | 1 set |
| Main roll forming machine | 1 set |
| Control box system | 1 unit |
| Out tables | 2 units |
| Tool box | 1 package |
3. Features of the production line
1) Directly input the data on the touchable screen, it is easy operation.
2) Automatically continually manufactures high quality product with PLC.
3) Saving time and cost owing to high speed running with hydraulic system.
4) Professional designing for manufactures roofing & walling
5) Unit one, one power wire
4. Application
Non-load-bearing exterior curtain walls
Axial load-bearing interior and exterior walls
Interior non-load-bearing walls
Floor joists and headers
Rafters, purlins, and girts

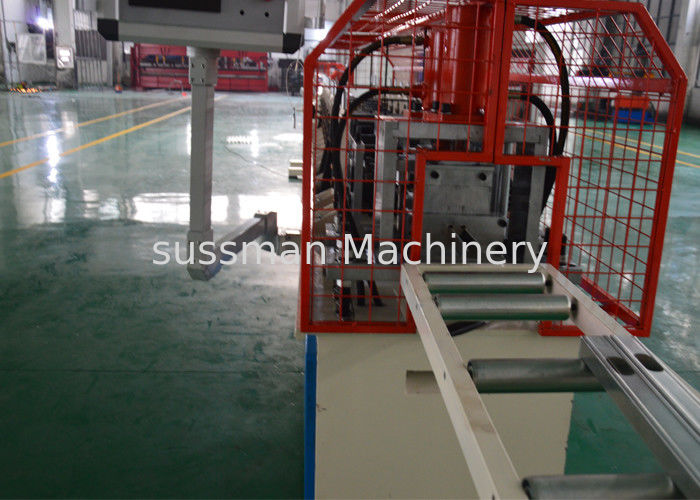

5. Machine picture
