Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SM-RM |
PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting
Technical Parameter
|
Item |
Technical data |
|
Steel sheet thickness |
0.4-1.2mm galvanized steel |
|
Hydraulic power |
4kw |
|
Transmission way |
1 inch chain |
|
Capacity of Decoiler |
3 Ton passive |
|
Forming Speed |
8-12m/min |
|
Roller Groups |
about 12 main rollers |
|
Roller Material |
45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62 |
|
Roller Diameter |
60mm |
|
Principal Axis |
45# high grade steel with quenching treatment |
|
Main Motor Power |
5.5 KW |
|
Dimension |
About 5.5*0.8*1.200m |
|
Weight |
3 Tons |
Application
1. furring is commonly used for purlins in exterior applications
2. Used to level uneven surfaces
3. Furring channel is used on masonry walls and ceiling assemblies
4. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework
Main Components
| Machine name | Quantity |
| 3 tons passive Decoiler | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic stop cutting device | 1 set |
| 4 meters finished tabels | 1 ste |
| PLC control box system | 1 set |
| Toll box | 1 package |
Working Flow
De-coiler—→feedingwithguide—→roll forming —→hydraulic stop cutting—→ out tables

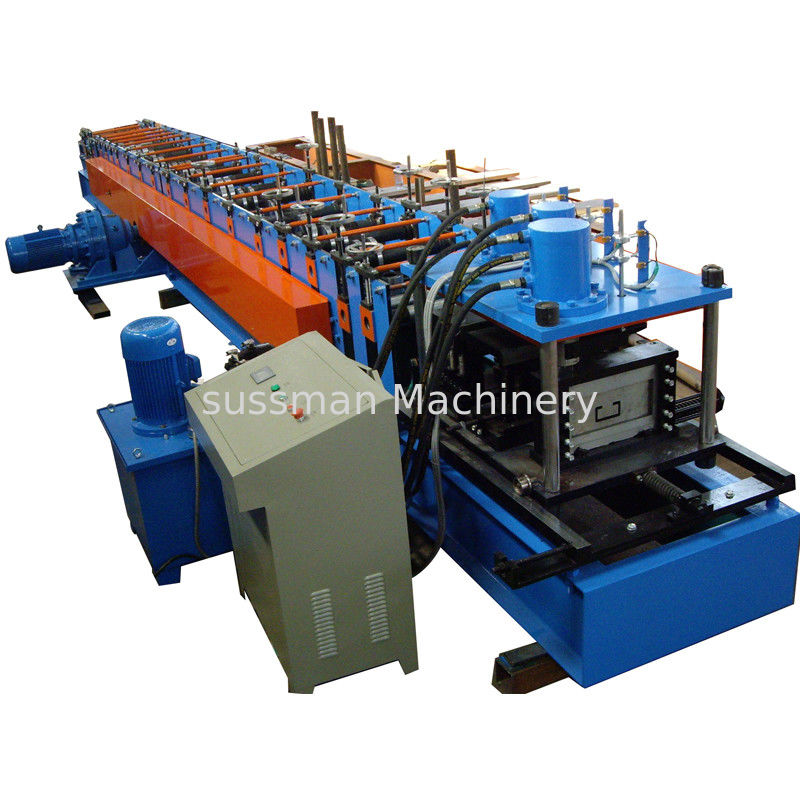

Machine Photo
