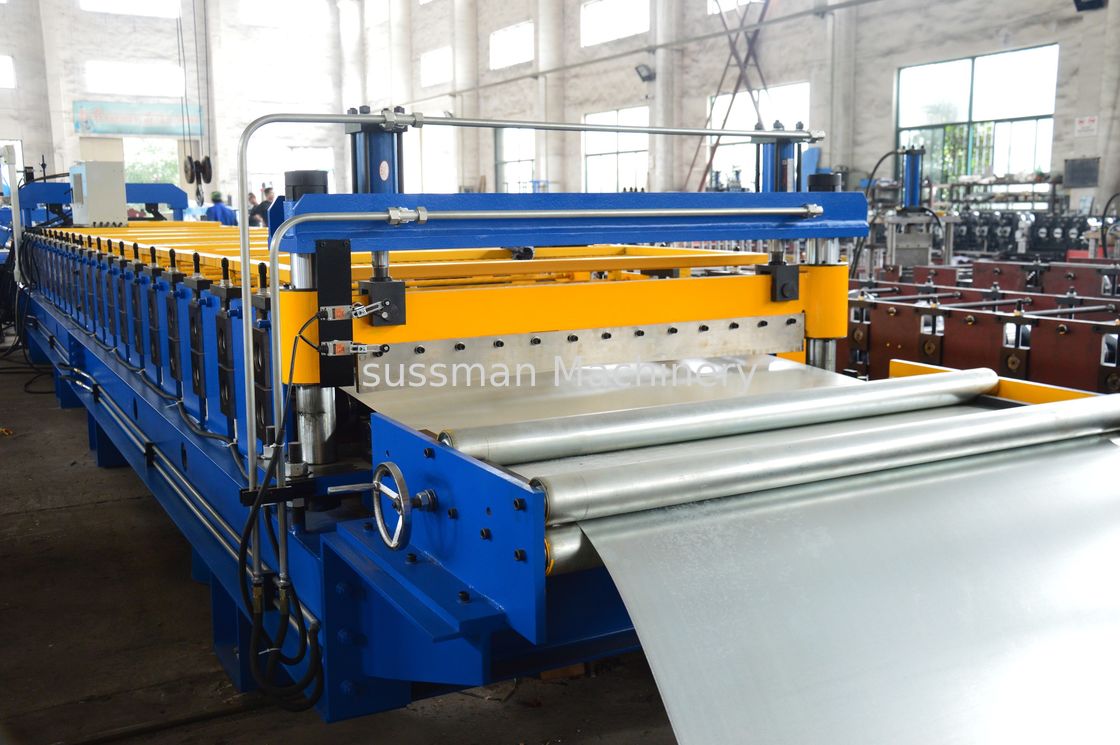

0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive
  • 0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive
  • 0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive
  • 0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive
  • 0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive
  • 0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive

0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive

Place of Origin China
Brand Name Sussman
Certification ISO 9001 SGS
Model Number RP
Product Details
Material:
0.15mm-0.3mm PPGI
Rolling Speed:
12-15m/min(not Include Cutting Time)
Roller Stations:
About 20 Stations
Roller Material:
45#forge Steel, Coated With Chrome
Material Of Chain:
45# Forged Steel With Frequency Quenching, 12A
Material Of Cutting:
Cr12Mov With Quench HRC58-62°
Tolerance:
±1.5mm
Type:
Corrugated Panel Roll Forming Machine
Transmission:
By Chain 1.2 Inch
Dimension:
9500*1600*1200 Mm
Voltage:
380V, 50HZ, 3phases
Control System:
PLC With Touch Screen
High Light:

roofing sheet roll forming machine

,

metal roof roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 22000-27500 per set
Packaging Details
Normal packing
Delivery Time
50 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5 sets per month
Product Description

0.15-0.3mm PPGI Corrugated Panel Roll Forming Machine With 1.2 inch Chain Drive



Technical Data

Item NO



Description



Offered specification

1.0 Roll forming machine
1.1 Rolling speed 12-15m/min(not include cutting time)
1.2 Rolling thickness 0.15mm-0.3mm PPGI
1.3 Raw material Color painted coils
1.4 Main Motor 7.5KW
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 825mm
1.8 Feeding Coil width 1000mm
1.9 Roller stations

About 20 stations



1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4kw



Technical Process



Uncoiling—Feeding with guide—Roll forming—cutting—Products collecting

0.15-0.3mm PPGI Roof Panel Roll Forming Machine With 1.2 Inch Chain Drive 0

 Machine List:



No Name Type quantity
1 5 ton passive de-coiler RF-RP18-63.5-825 1 set
2 Main roll forming machine RF-RP18-63.5-825 1 set
3 Control box RF-RP18-63.5-825 1 unit
4 Hydraulic station RF-RP18-63.5-825 1 unit
5 Passive Out tables RF-RP18-63.5-825 2 units
6 Mesh cover RF-RP18-63.5-825 1 unit





Details of each part:



1. Cutting

(1) Cutting after forming: Cut the sheet after roll forming to required length

(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(3) Material of blade: CR12with heat treatment

(4) Length measuring: Automatic length measuring

(5) Tolerance of length: 10m+/- 2mm



2. Out table:

Size:2000*1350*1000mm, two sizes



3. Control Box: Panasonic

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)

(2) length & quantity measurement automatically;

(3) length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(5). Control panel: Button-type switch and touch screen

(6) Unit of length: millimeter (switched on the control panel)
