Roof Panel Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | SM-DF |

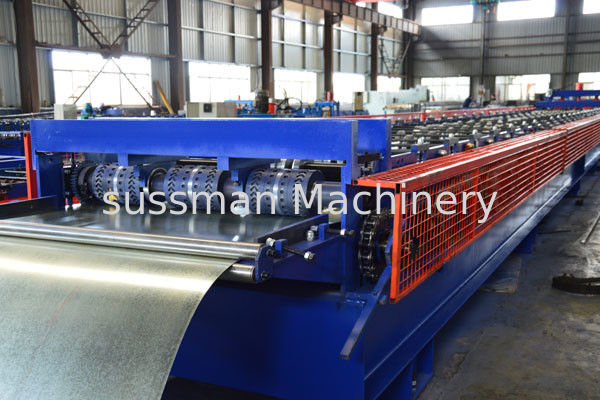

28 Rollers Galvanized Steel Deck Roll Forming Machine For Building Construction
Metal deck steel produced by this Metal Deck Roll Forming Machine, it has high strength with big wave length.
Normally the material thickness is from 0.7-1.2mm.
Tiles Making Machine are looked beautiful, elegant and noble.
It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on
Technical Parameter
| S.N | Items | Descriptions |
| 1 | Rolling Speed | 15-30m/min(cutting time is not include) |
| 2 | Steel sheet Thickness | 0.7-1.2mm color painted sheets and galvanized steel |
| 3 | Coil width | according to the final drawing |
| 4 | Control System | PLC Delta or customized |
| 5 | Roller Stations | about 28 stations |
| 6 | Roller Material | 45# forge steel, coated with chrome |
| 7 | Shaft Material and DIA | ￠90mm,material is 45# forge steel, Chrome with quenching |
| 8 | Main Motor Power | 15kw Anhui wannan Brand |
| 9 | Hydraulic Pressure | 12Mpa |
| 10 | Tolerance | +-1.5mm |
| 11 | Power supplier | 380V, 50HZ,3 phase |
| 12 | Way Of Drive | 2 inches single chain |
| 13 | The size of the forming machine | About 15000*1500*1200mm |
| 14 | Machine weight | about 10 tons |
Machine working flow
Automatic decoiler--feeding with guide--Pre-cutting----Roll forming----Cutting---Out put tables
Machine Component
|
10T hydraulic de-coiler with coil car |
1 set |
|
Main roll forming machine |
1 set |
|
Pre cutting device |
1 set |
|
PLC Control box |
1 set |
|
Hydraulic station |
1 set |
|
4 meters conveyor |
1 set |
|
6 meters auto stacker |
1 set |
| servo following cutting device | 1 set |
Profile Drawing
After we use machine for long time, we need to do some maintance to keep the machine more longer.
