0.25mm-0.8mm Mini corrugated panel Roll Forming Machine With Material Width 1220mm
Brief introduction
This corrugated forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
Technical Parameter
Material: GI, PPGI
Material thickness: 0.25-0.7mm
Material width: depend on profile
Decoiler: manual passive decoiler ( customer can choose hydraulic decoiler )
Weight capacity of decoiler: 5 Ton
Forming Station of Color Steel Tile Roll Forming Machine: 16 stations ( depend on profile )
Drive: 1.inch chain transmission
Main forming power: 7.5KW
Hydraulic power: 4KW
Roller material: 45# forge steel , polished and coated with 0.05mm hard chrome
Principal axis diameter: 75mm ( depend on profile )
PLC: Panasonic
Cutting blade material of color steel tile roll forming machine: Cr12
Table: simple non-power table
Glazed Tile Main Components
S.N |
Equipment name |
Quantity |
1. |
5T passive un-coiler(optional) |
1 set |
2. |
Main roll forming machine
|
1 set |
3. |
Hydraulic cutting |
1 set |
4. |
Control system (including control box) |
1 set |
5. |
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles

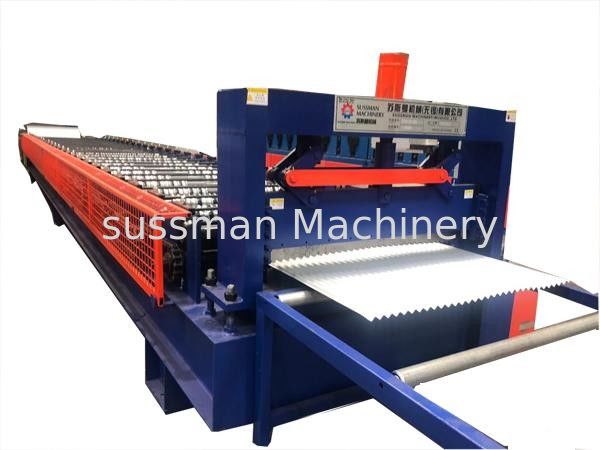

Corrugated machine
Machine layout
