Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control
  • Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control
  • Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control
  • Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control

Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control

Place of Origin China
Brand Name Sussman
Certification SGS, ISO, CE
Model Number SS-FP
Product Details
Suitable Raw Material:
Colour Steel Or Galvanized Steel Sheet
Material Thickness:
0.15-0.4mm
Machine Weight:
About 3 Ton
Rolling Speed:
12-15m/min
Roller Stations:
6 Stations
Control System:
PLC With Touch Screen
Roller Material:
Gcr15 Steel With Quenching
Shaft Material:
45# Steel Diameter 75mm Shaft
Material Of Cutting:
CR12 With Quench Treatment
Tolerance:
+-1.5mm
High Light:

roofing sheet roll forming machine

,

metal roof roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD23800-USD43800
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
60 days working days after deposit
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control




Technical parameter


1

Suitable to process

GI,PPGI

2

Type of the product

right angle steel (as your need)

3

Thickness of the plate

0.14-0.8mm

4

De-coiler

opinional

5

Rollers for forming

9 rows

6

Diameter of the roller

74 mm

7

Rolling material

GCr15

8

Main motor power

8-11kw,5#

9

Productivity

8-12m/min

10

Cutting method

Hydraulic mould cutting

11

Material of the cutting blade

Cr12

12

Hydraulic cutting power

3kw

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Side panel of machine

14mm

16

Main structure of the machine

300 H steel

17

Weight

About 2.0T

18

Dimensions

6000*2000*1506mm

19

Voltage

380V 50Hz 3phases(changeable as needs)







Main Components





No Name Quantity
1 5 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables

2 units








Working Flow of Roll Forming Machine





A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

B.Servo Feeding Applicator............................................To feed the material accurately

C.Hydraulic/Press Punching...........................................To punch as requirements

D.Roll Forming Unit.........................................................To roll form as requirements

E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)

F.Output Table................................................................Support the finished products





De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table










Profile and drawing of product:








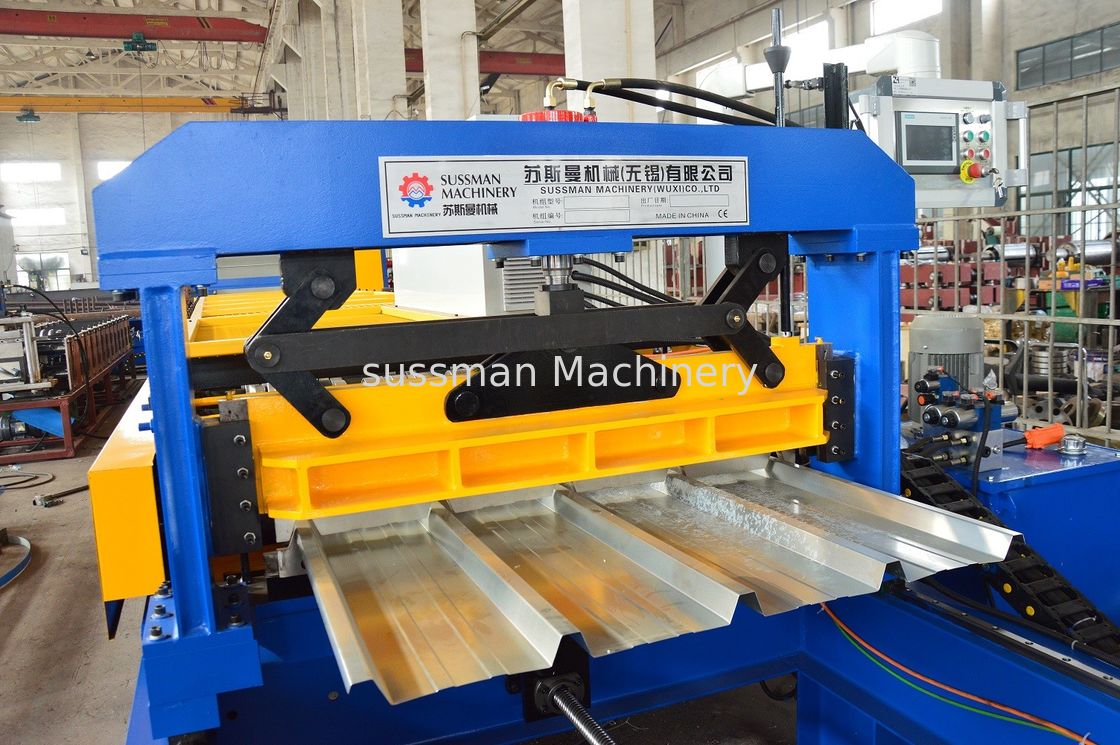

Machine Photo


Galvanized Steel Barrel Type Roof Sheet Making Machine High Frequency PLC Control 2
