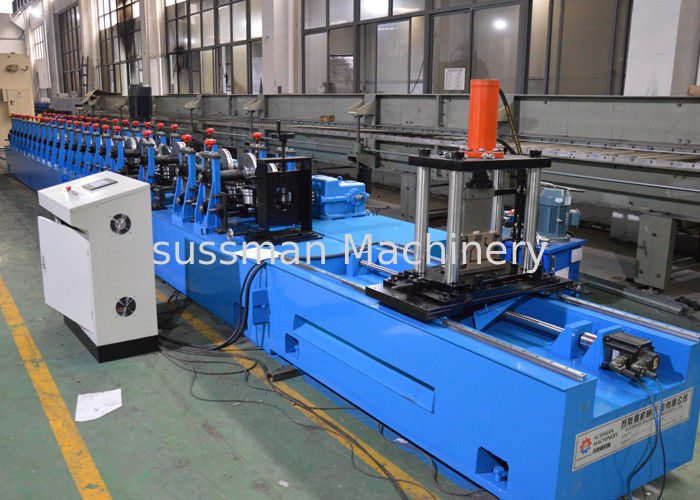

Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa
  • Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa
  • Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa
  • Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa

Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa

Place of Origin Jiangsu,China
Brand Name Sussman
Certification CE ISO 9001
Model Number SM-RM
Product Details
Material Thickness:
1.5-3.0mm
Forming Stations:
18 Stations
Material:
Galvanized Steel And Black Steel
Main Motor Power:
11 KW
Cutting:
Following Cutting
Hydraulic Station Power:
4KW
High Light:

steel roll forming machine

,

metal roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard Packing with steel wire fixed and film coated
Delivery Time
75 days
Payment Terms
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability
10 set per month
Product Description



Yield strength 250 - 550MPa Upright Rack Roll Forming Machine With Holes Punching




Roll Forming Machine Technical Parameter


No.

Item

Specification

Optional

1

Suitable material

Type:Galvanized Coil, PPGI, Carbon steel Coil







Thickness(mm):1.5-2.0,1.5-3.0







Yield strength: 250 - 550MPa







Tensil stress( Mpa):G350Mpa-G550Mpa



2

Nominal forming speed(m/min)

10-20

Or according to your requirement

3

Forming station

18



4

Decoiler

Manual decoiler

Hydraulic decoiler or double head decoiler

5

Main machine motor

Wuxi Brand

Siemens

6

PLC brand

Panasonic

Siemens

7

Inverter brand

Yaskawa



8

Driving system

Chain drive

Gearbox drive

9

Rollers’ materail

GCr15

D2 steel

10

Station structure

Casting iron structure

Forged Iron station

Or Wall panel station

11

Punching system

Punching press

Hydraulic punching station

12

Cutting system

Post-cutting

Pre-cutting

13

Power supply requirement

380V 50Hz

Or according to your requirement

14

Machine color

Blue

Or according to your requirem



We have experience of exporting our pallet racking roll formers to Mexico, Peru, Costa Rica, India, etc.



We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.



In warehouse pallet racking system, we are able to manufacture more machines like upright section roll forming machine and shelf panel roll forming machine etc.




Machine’s Components


Equipment name

Quantity

3T electric de-coilers

Servo feeding device

1 set

Leveling device

1 unit

Press machine

1 unit

Main roll forming machine

1 set

Hydruaulic Cutting holder

1 set

Control system ( including control box)

1 set

Out tables

2 units

Punching die set

3 sets

Spare parts

1 package




Profile drawing
Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa 0



Application


Pallet racking roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machineable thickness is from 1.5-3.0mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.



Packaging & Delivery


Standard package with film, plastic and steel wire. (or customized)
1.Need about two 40ft containers for loading one set machine completely

2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film

3. Spare parts and some small parts packed in plastic tooling box

4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 75 working days after payment

Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa 1

Upright Rack Roll Forming Machine With Hole Punching Yield Strength 250 - 550mpa 2
