Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

China Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier
Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation supplier

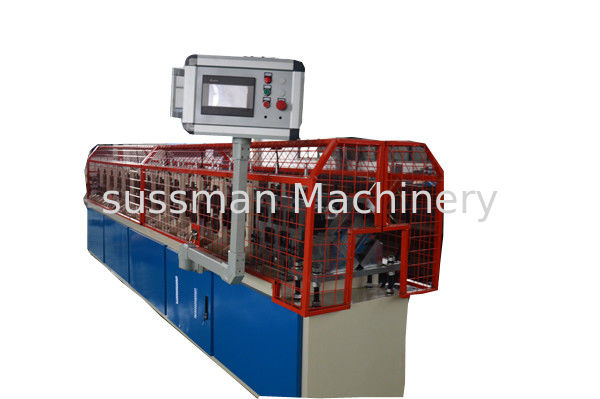

Large Image :  Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Product Details:

Place of Origin: China
Brand Name: Sussman Machinery
Certification: CE, ISO9001
Model Number: SM-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD17500-25500 per set
Packaging Details: Plastic film
Delivery Time: 60-90 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Raw Material: Galvanized Coils Speed: 12-30m/min
Punching: Optional Machine Size: 5000mm-600mm-700mm
Hydraulic Station: 4kw Cutting System: Hydraulic Cutting
Warranty: 2 Years Warranty, Lift Time Service Control System: Delta Or Siemens
Tooling Material: Cr12 With Heat Treatment Cutting Material: Cr12mov



Technique data for High speed light weight Galvanized coils Stud track roll formimg machine with perforation system



Product and installation of the stud track profile



 Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Specification of the stud track machine



  Items Specifications Remarks
Material of coil Material Thickness 0.3-0.85mm galvanized steel
De-coiler Weight 3 ton hydraulic decoiler&coil car
Forming system Rolling Speed 10 m/min
embossing 1 set of rolls
Roller Stations About 13 stations forming
Roller Material Cr40 Steel with quenching
Shaft Material

45# Steel Diameter 75mm shaft




Maim Motor Power 5.5 kw
Hydraulic cutting Power 4 kw

Cutting

system

Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Cutting blade 1 set of cutting blade
Electrical control system Electric Source

380V, 50HZ,3 phase




Control System PLC Delta
  Weight About 4 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 5000mm* Width 600mm* Height 700m





Spare parts



4 meters simple out table



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation



Punching device



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation



3 ton passive decoiler

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation



More installation system



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Wall frame

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Stud track with perforation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Installation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Wall installation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation
