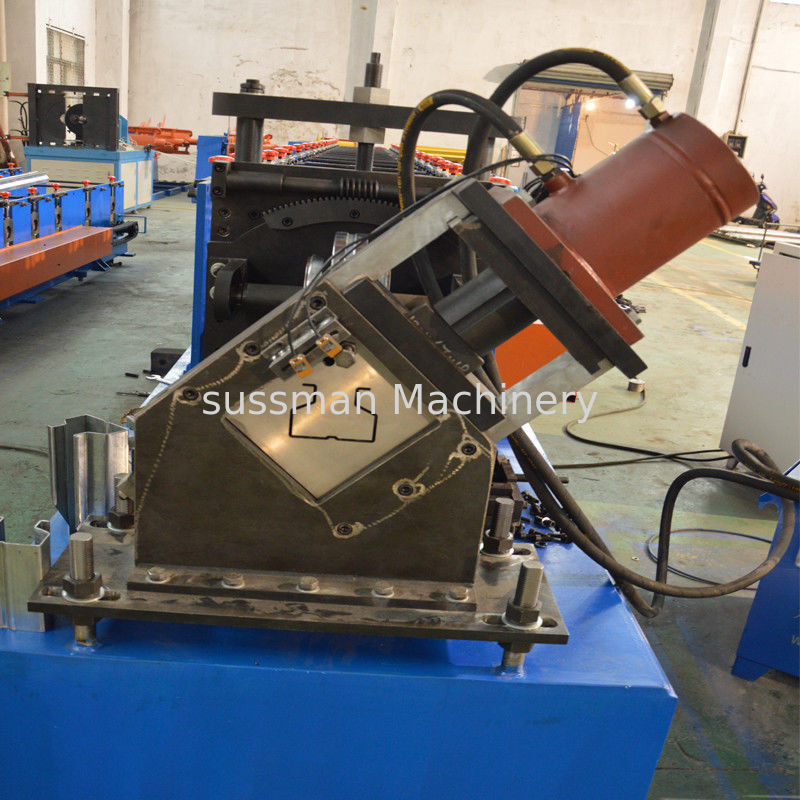

Warehouse Storage Racking Roll Forming Machine Pillar Upright Racking System Making

China Warehouse Storage Racking Roll Forming Machine Pillar Upright Racking System Making supplier

Large Image :  Warehouse Storage Racking Roll Forming Machine Pillar Upright Racking System Making

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: CE.SGS.ISO
Model Number: SS-RS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD65000-85000 Per Set
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: Shipped in 90 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Type: Storage Shelf Rack Roll Forming Machine Material: 1.5-2.5mm, Galvanized Steel Or Blank Steel
Working Speed: 12 Meters / Min Forming Steps: 18 Stations
Material Of Roller: Gcr15, Quench HRC58-62 Plated Chrome Material Of Shaft: 45# Advanced Steel (Diameter: 76mm), Thermal Refining
Driven System: Chain Drive Dimension: 12500mm*800mmm*800mm With Mesh Cover
Control System: PLC Weight: About 20 Tons
Application: Racking & Shelving



Warehouse Storage Racking Pillar Upright Racking System Making Machine





Upright Beams for Shelves Line includes a Manual (Auto) Decoiler, Auto Hole Punching Machine, and a Racking Upright Rollforming Machine.

SPECIFICATIONS FOR RACKING UPRIGHT ROLL FORMING MACHINE



Machine specification
Electric power (3 phase, 50 Hz, 380 V)
kW
15
Machine Weight
Tons
9.0–10.0
Machine Dimensions (L x W x H)
m
12.0 x 1.4 x 1.6
Station quantity
stations
20-22

Raw material
Steel Thickness (BMT)
mm

1.5–3.0
Material Strength

G550




Production specification
Forming speed
m/min
14-18 (including stop-cutting & punching process)
Control system

PLC, HMI
Rolling transmission & Cutting and punching system

Hydraulic
Length Tolerance
mm
± 2

Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.
