Racking Upright Post Metal Roll Forming Machine With 5T Hydraulic Uncoiler

Place of Origin	China
Brand Name	SUSSMAN
Certification	CE.SGS.ISO
Model Number	SS-RS

Product Details

Type:

Rack Upright Roll Forming Machine

Tile Type:

Steel

Cutting Mode::

Hydraulic Cutting

Suitable Material:

Galvanized Coil, Cold Roll Steel

Material Thickness:

1.2mm-2.5mm Or As Client's Requirement

Shaft Material:

45# Forge Steel

Drive System:

Chain Driven 1.5 Inches 20A Double Chain With Longer Shafts

Highlight:

racking roll forming machine

metal roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD65000-85000 Per Set

Packaging Details

Standard package with film, plastic and steel wire. (or customized)

Delivery Time

Shipped in 90 days after payment

Payment Terms

L/C, T/T

Supply Ability

10 sets per month

Product Description

Racking Upright Post Roll Forming Machine With 5T Hydraulic Uncoiler

Technique Parameter

Suitable to process	Color steel plate, galvanized sheet,aluminum coils and etc.
Roller station	17 rows forming / 7 roller leveling
Thickness of feeding material	2.0-2.5 mm
Productivity	8-12m/min
Rollers' material	45# forging steel
Diameter of shaft	100mm
Cutting tool material:	GCr12 with quenched treatment 60-62°C
Weight	About 6.9T
Size	13.51.851.6m
Voltage	380V 50Hz 3phases
Wall thickness of main forming machine	14mm steel plate
Main forming machine body	300 mm H steel
Total power	22+11 kw
Leveling power	2.2 kw

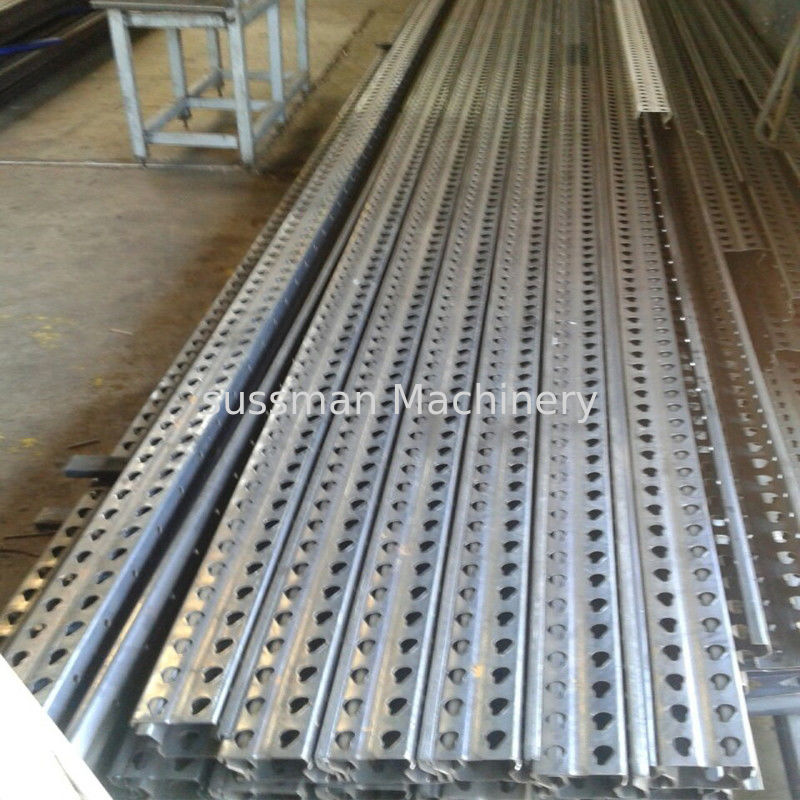

Racking Upright Post Metal Roll Forming Machine With 5T Hydraulic Uncoiler 0

Racking Upright Post Metal Roll Forming Machine With 5T Hydraulic Uncoiler 1

Racking Upright Post Metal Roll Forming Machine With 5T Hydraulic Uncoiler 2

Racking Upright Post Metal Roll Forming Machine With 5T Hydraulic Uncoiler 3
