Rack Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | CE/ISO9001 |
| Model Number | SM-DL |
|
Number |
Items |
UnitType |
RF-SD |
|
1 |
Steel Thickness |
mm |
1.5mm |
|
2 |
Forming Speed |
m/min |
8-12 |
|
3 |
Roller stands |
stand |
16 stands |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome quenching |
|
|
Shaft material and diameter |
mm |
Ф76 45# steel, coated with chrome |
|
5 |
Main Motor Power |
Kw |
22 |
|
6 |
Hydraulic cutting Power |
Kw |
4 |
|
7 |
Hydraulic pressure |
Mpa |
12 |
|
8 |
Power Supply |
|
220V/380V, 60HZ,3 phase |
|
9 |
Tolerance |
mm |
1.5 |
|
10 |
Material of cutting |
|
Cr12mov HRC60-62 |
|
11 |
Control system |
|
PLC with touch screen |
|
12 |
Machine net weight |
T |
20 |

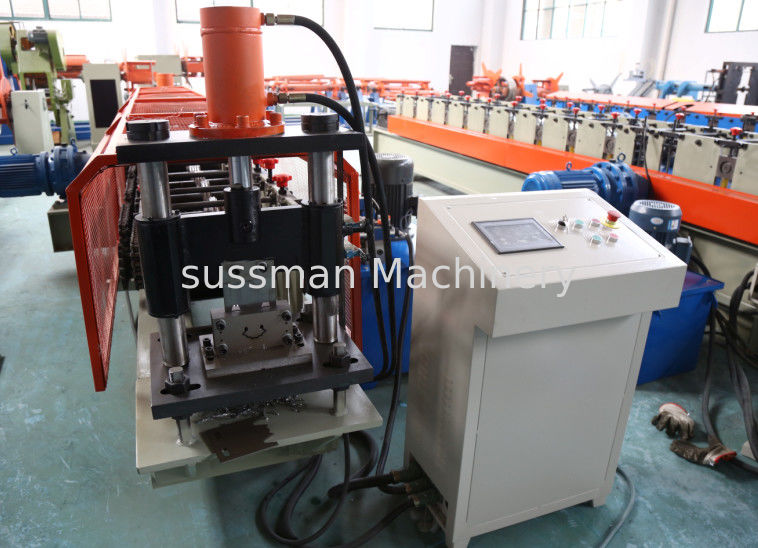

1.This machine is made up of roll forming machine,manual decoiler,cutting machine,PLC computer control and hydraulic system,out put tables.
2.The machine is stable,no noise,no leak of hydraulic oil.
3.It is one unit, the control box and the hydraulic station for the cutting are all put under the machine frame to save space.
4.The touch screen is hang over, it is not under the floor.
5.When you get the machine,it is no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working.
