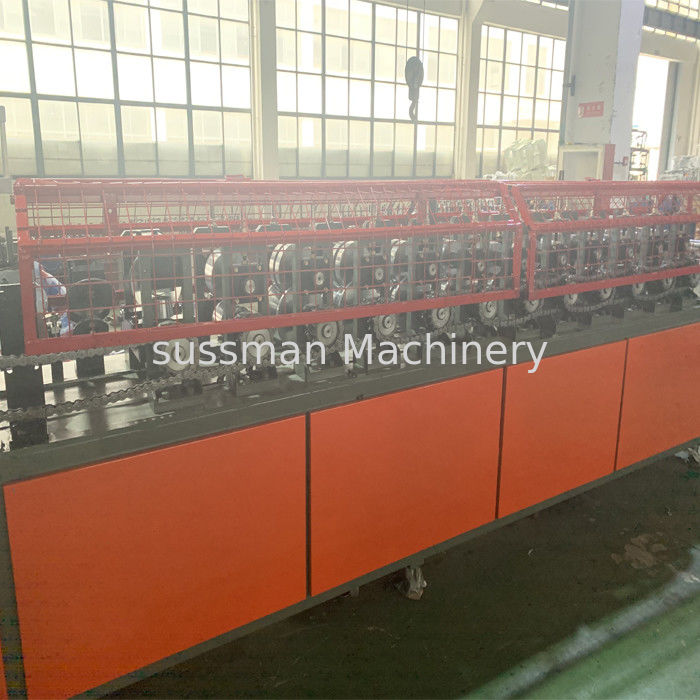

Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
  • Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
  • Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
  • Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
  • Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
  • Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine
Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine

Metal C Shape Furred Ceil 12m/Min Light Keel Roll Forming Machine

Place of Origin China
Brand Name sussman
Certification CE ISO 9001
Model Number SM-DW
Product Details
Roller Material:
45# Steel
Forming Speed:
10-12m/min
Raw Material:
PPGI PPGL GI GL
Cutting Blade Material:
Cr12
Shaft Material:
45# Steel
Shaft Diameter:
40mm
Highlight:

12m/Min Light Keel Roll Forming Machine

,

PPGL Light Keel Roll Forming Machine

,

12m/Min Metal Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiable
Packaging Details
steel +film
Delivery Time
45-55 days
Payment Terms
L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability
10 set per month
Product Description

Metal C Shape Furred Ceil Studs Track / Drywall Steel Material Light Keel Roll Forming Machine

Stud and Track Roll Forming Machine, as known as Hat Shape Roll Forming Machine, Main Channel Roll Forming Machine, Omega Furring Channel Roll Forming Machine, Wall angle Roll Forming Machine, Ceiling Roll Forming Machine Light Steel Keel Roll Forming Machine etc.
These can produce studs, tracks and many other shapes derived form Shape C.
Thickness is normally 0.25-1.2mm .
If you need to more efficiency then we recommend you adpot the Flying shear with No-stop system. Max line speed can be reach at 40m/min.
If you want to produce more than one profile in one machine, we recommend you the double rows forming machine and triple rows forming machine to save space and economy.

Light steel keel roll forming machine



stud



track



Omega







Sample


Roller stations 12 10 12
Thickness 0.4-0.6mm 0.4-0.6mm 0.4-0.6mm
Cutting type Hydraulic mold Hydraulic mold Hydraulic mold
Shaft type solid solid solid
Roller processing Quenching,chroming Quenching,chroming Quenching,chroming
PLC Delta Delta Delta
Computer screen Touch screen Touch screen Touch screen
Main motor 4KW 4KW 4KW
Hydraulic motor 3KW 3KW 3KW
Board thickness 25mm 25mm 25mm
Transmission gear gear gear
Shaft diameter 40mm 40mm 40mm
