Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Automatic C/U Changeable Stud And Track Roll Forming Machine for CeilingSystem
1. Technical Parameter
| Metal stud and track drywall channel roll forming machine for ceiling | |
| Suitable material | PPGI/galvanized sheet |
| Thickness of coil sheet | 0.5-1.2mm |
| Coil width | as customer's profile drawing requirement |
| Effective width | as customer's profile drawing requirement |
| Material of main frame | welded by 6mm steel plate |
| Diameter of Soild shaft | 75mm, high grade 45# steel |
| Roller | Cr12Mov |
| Forming station | 12 rows |
| Drive type | Chain |
| Power of main motor | 7.5 kw, Lichao, Shanghai, with reducer |
| Hydraulic pump station | 4kw, 46# hydraulic oil |
| PLC | DELTA(TAIWAN)/Mitsubishi |
| Material of cutting blades | Cr 12, quenching 58-62℃ |
| Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy±1mm, far better than industrial standard ±3mm. |
| Switch | CHNT |
| Frequency changer | Delta,Taiwan |
2. Machine Components
This is economic light steel frame machine to make the house frame, like roof, wall, windows, truss,etc.
We can make fully automatic light steel frame machine with vertex software.
Also we can design the machine as your requirement or drawings.
| 3T electric decoiler | 1 set |
| Hydraulic punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. Other profiles we can make

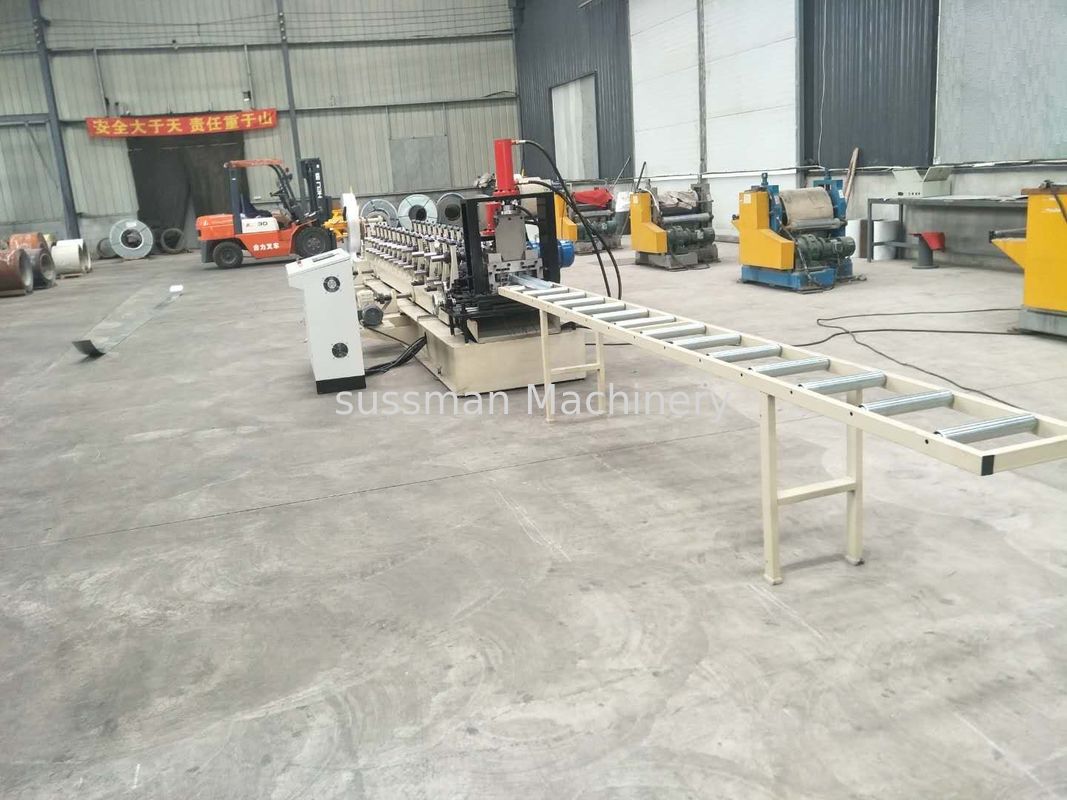

5.Machine picture
