Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

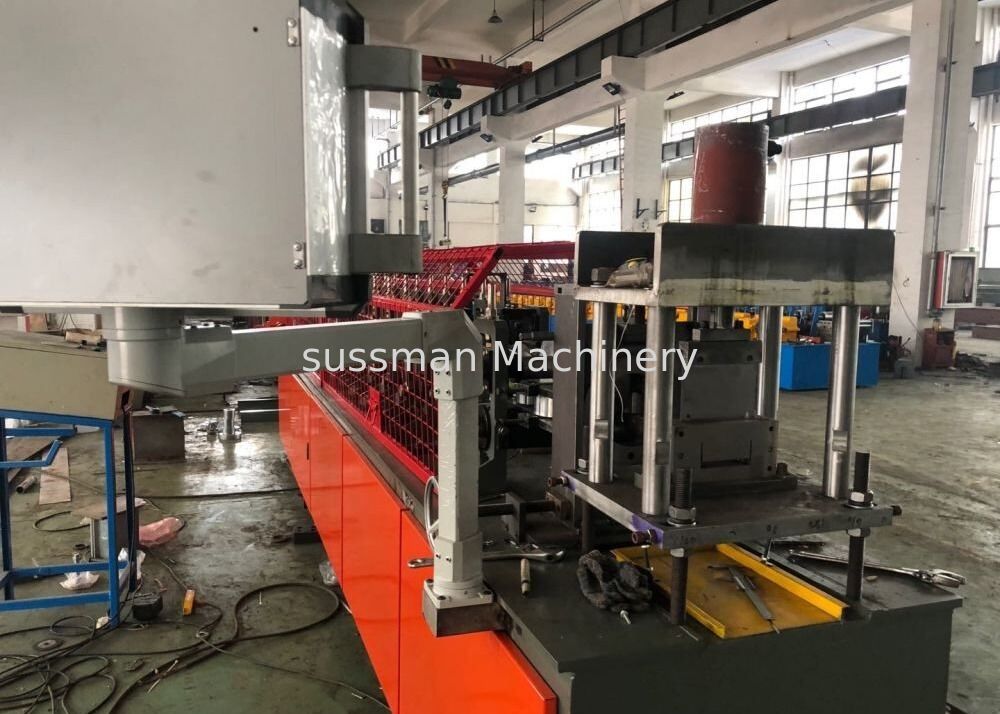

3 Tons Manual Drywall CW UW Sheet Roll Forming Machine for Ceiling System
1. Technical Parameter
| Part details | Item Name | Specification |
| Manual uncoiler | carrying capacity | 3 tons |
| Stype | Manual | |
| Raw coil | Coil material | PPGI |
| Coil thickness | 0.5-1.2 mm | |
| Machine body | Roller station | 12 stations |
| Roller material | Gcr15 steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 60 mm | |
| Machine weight | About 435 tons | |
| Machine size | 4.5*0.8*1.2 m | |
| Speed | 8-12 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12Mov | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Delta made in Taiwan |
| Motor power | 7.5 kw | |
| Hydraulic pump power | 4 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
2. Machine Components
If you need to more efficiency and high speed, then we recommend you adpot the servo flying shear with no stop system, the Max. whole line speed can be reached at 30-50m/min.
If you want to produce more than one profile in one machine, we recomend you the double rows forming machine and triple rows forming machine to save space and economy, we called 2 in one and 3 in one machine.
Also we can design the machine as your requirement or drawings.
| 3Tons manual decoiler | 1 set |
| Hydraulic stop cutting | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. Application
