Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-C89 |
C89 0.6mm-1.2mm G550 Framecad Light Gauge Steel framing Roll Framing Machine
Main Accessories:
(1) Main Forming Machine;
(2) 2T Hydraulic Uncoiler;
(3) Automatic Post Punching & Cutting Device;
(4) Hydraulic Motor System;
(5) Industrial Computer Controlling System
(6) Hydraulic Post-cutter;
(7) Automatic Printing Device;
(8) Vertex BD Design Software;
(9) Run Out Table;
(10) Tools
Main Specifications
| Item | Description |
| Automatic Decoiler | |
| Loading Weight | 2000kgs |
| Coil Inner Diameter | φ430~520mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.7~1.2mm |
| Profile description | |
| C Profile size | 89*41*13mm |
| Roll Forming Machine | |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: SKD-11 |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp |
| Control System | |
| Control Device | One Lenovo laptop, a control box inside of based frames of the machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back or stop |
| Main brand | PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron) |
| Motor and hydraulic System | |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table | |
| Length | 3M with side pnematic support |
| General introduction | |
| 1. Windows system touch panel. Quick importing NC instructions Via network or USB interface. | |
| 2. Visual work process monitoring | |
| 3. Vertex BD Software | |
| 4. German Bosch Rexroth hydraulic system. Quick loading and unloading mould design | |
| 5. High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing | |
| 6. Built-in maintenance free ink jet printer | |
| 7. Perfect forming. Accurate sizing | |
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.

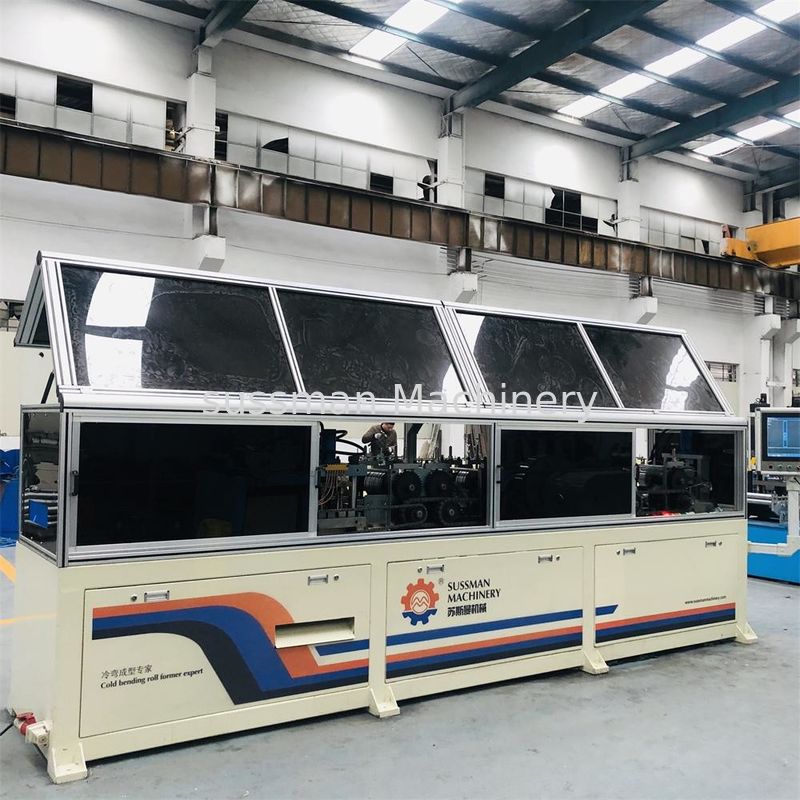

Our machine photo
