Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine
  • Villa House C89 Framecad CAD Steel Frame Roll Forming Machine

Villa House C89 Framecad CAD Steel Frame Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material Thickness:
0.7-1.2mm
Software:
Vertex Software
Roller Material::
Skd-11
Machine Type:
C89 LGS Machine
Shaft Material:
40Cr
Material:
Z275, AZ150
Punching Dies:
8 Sets
High Light:

CAD steel frame roll forming machine

,

C89 steel frame roll forming machine

,

Villa house frame forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
75 days after deposit
Payment Terms
D/A, L/C, D/P, T/T
Supply Ability
5 sets/month
Product Description

3 Storey Villa house C89 Framecad CAD Light Steel framing Roll Forming Machine


Main Specifications



Item Description
Automatic Decoiler
Loading Weight 2000kgs
Coil Inner Diameter φ430~520mm
Coil Outer Diameter φ1300mm
Strip width 100~450mm
Strip thickness 0.7~1.2mm
Profile description
C Profile size 89*41*13mm
Roll Forming Machine
Dimension 5000*1000*1800mm
Weight 3500kgs
Roller grade Material: SKD-11
Roller Processing Technique CNC maching,heat treatment HRC58-60
Shaft grade 40Cr Steel
Shaft processing technique CNC maching, quenching and tempering HRC28-32
Punching Device dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp
Control System
Control Device One Lenovo laptop, a control box inside of based frames of the machine
Design Software Vertex BD from AU
Leaser Printing Device USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number
Remote-control Device Wireless remote-controller controls machine to go forward or back or stop
Main brand PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron)
Motor and hydraulic System
Servo motor 5.5kw with precious gear reducer
Hydraulic station 7.5kw , 200L tank
Run-out Table
Length 3M with side pnematic support
General introduction
1. Windows system touch panel. Quick importing NC instructions Via network or USB interface.
2.Visual work process monitoring
3.Vertex BD Software
4.German Bosch Rexroth hydraulic system. Quick loading and unloading mould design
5.High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing
6.Built-in maintenance free ink jet printer
7.Perfect forming. Accurate sizing





VERTEX BD house design software


1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.



Why Steel Framing


There are many reasons why steel framing has come to the forefront as one of the best and most feasible alternative building materials for residential and commercial construction. Steel is a Superior Construction Material.
1. Highest strength-to-weight ratio of any building material
2. 100% recyclable
3. 68% industry recycling rate
4. Non-combustible - does not burn nor contribute fuel to the spread of a fire
5. Inorganic - will not rot, warp, split, crack or creep
6. Dimensionally stable - does not expand or contract with moisture content
7. Consistent material quality - produced in strict accordance with national standards, no regional variations

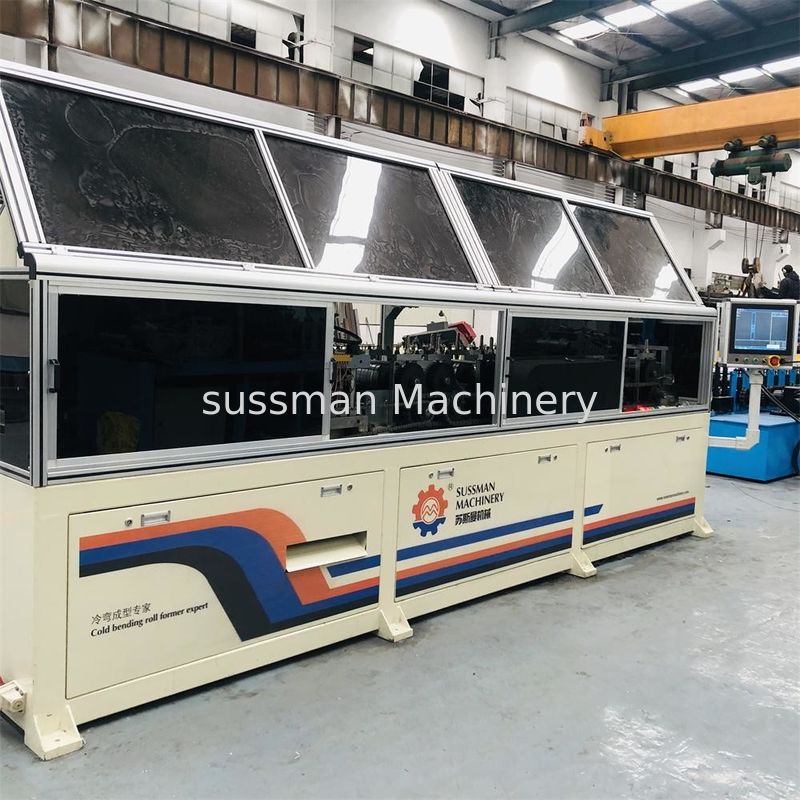

Our machine photo
 Villa House C89 Framecad CAD Steel Frame Roll Forming Machine 0Villa House C89 Framecad CAD Steel Frame Roll Forming Machine 1Villa House C89 Framecad CAD Steel Frame Roll Forming Machine 2Villa House C89 Framecad CAD Steel Frame Roll Forming Machine 3
