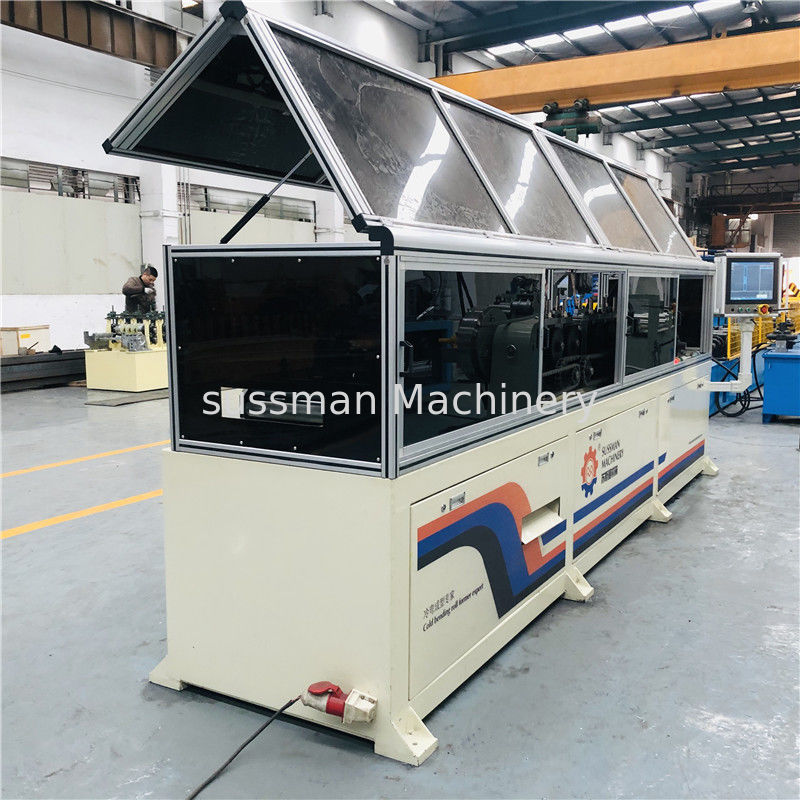

550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling

550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling
550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling

Large Image :  550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 5 sets/month
Detailed Product Description
Hydraulic Station Power: 5.5KW Material Thickness: 0.6-1.2mm
Feeding Width: 182mm Roller Material:: Skd-11
Decoiler: 2 Tons Power(KW): 7.5kw
Product Capacity: 12-15m/min Hydraulic Cooling: Air Conditioning Cooling
High Light:

141MM steel roll forming machine

,

550Mpa steel roll forming machine

,

550Mpa cnc roll forming machine

245-550 Mpa 141 Mm Material Width 7.5 Kw Light Gauge Steel Framing Machine



Main Specifications



No. Item Specification
1 Powered Decoiler
Loading weight 2 tons
Coil Inner Diameter 460-520mm
Power 1.5kw
2 Roll Forming Machine
Dimension 5Mx1Mx1.8M
Weight 3500KGS
Material of Rollers Material: GCr15
Processing Technic for Rollers CNC machining, heat treatment HRC58-60,then processed by CNC lathe, plating finally
Material of Shafts 40Cr
Processing Technic for Shafts

CNC machining, quenching and tempering HRC28-32,then processed by CNC lathe, plating and polishing finally

Sheet Guiding Device

Holes Punching Device



(dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp)





3 Control System
Main control system One Lenovo laptop and a control box inside of based frames of the machine
Producing software Special designed to match with the designing software Vertex
Leaser Printing Device USA Matthews Leaser Printing Device for painting spray logo and installation indicating number
Remote-control device Wireless remote-controller controls machine to go forward or backward or stop
Brands of main components PLC(self-developed),Relay (Schneider), proximity switch(Schneider), Encoder(Omron), Servo Motor(Xinjie)
4 Servo System and Hydraulic System
Servo motor 5.5kw, taking with precision planetary gear reducer
Hydraulic Station 7.5KW;Hydraulic oil injection 200 litre
5 Run-out Table
Length 3M




VERTEX BD house design software


1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.





Equipment description


1: Configuration of the machine

Uncoiler 1 set

Roll forming roller: 12 groups

PLC control system 1 set

Hydraulic cutting system: 1 set

Collection table



2: Working Process Flow of the omega profile forming machine

Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) - Cutting-Collection table



3: Technical Parameters:



A: Power supply:

380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)

Main motor power: 7.5KW

Pump power: 5.5kw



B:Uncoiler:

Inner diameter: 460-520mm

Outer diameter: 1300mm
loading weight: 2T



C:Forming part:

Feeding thickness: 0.6-1.2mm

Feeding width: 50-500mm

Forming speed: 8-12m/min

Cutting Deviation: 10m±2mm

No. of Roller station: 12 groups

Roller material: GCr15

Material of shaft: Cr40

Diameter of shaft: 42mm



D:Hydraulic System:

Hydraulic pressure: 10-12 Mpa

Cutter material: SKD11



E:Control system:

Full-automatic NC-PLC control system

Control channel: Colored touch screen



Our machine photo

550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling 0

550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling 1

550Mpa 141MM CNC Steel Roll Forming Machine air conditioning cooling 2
