7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine

7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine
7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine

Large Image :  7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 5 sets/month
Detailed Product Description
Hydraulic Station Power: 5.5KW Design Software: Vertex
Weight: 3.5t Power(KW): 7.5kw
Product Capacity: 12-15m/min Hydraulic Cooling: Air Cooling
High Light:

C89 stud roll forming machine

,

7.5KW stud roll forming machine

,

Vertex stud roll forming equipment

C89 LGS Steel Frame CAD Machine Light Gauge Steel Framing Machine



Main Specifications



Item Description
Automatic Decoiler
Loading Weight 2000kgs
Coil Inner Diameter φ430~520mm
Coil Outer Diameter φ1300mm
Strip width 100~450mm
Strip thickness 0.7~1.2mm
Profile description
C Profile size 89*41*13mm
Roll Forming Machine
Dimension 5000*1000*1800mm
Weight 3500kgs
Roller grade Material: SKD-11
Roller Processing Technique CNC maching,heat treatment HRC58-60
Shaft grade 40Cr Steel
Shaft processing technique CNC maching, quenching and tempering HRC28-32
Punching Device dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp
Control System
Control Device One Lenovo laptop, a control box inside of based frames of the machine
Design Software Vertex BD from AU
Leaser Printing Device USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number
Remote-control Device Wireless remote-controller controls machine to go forward or back or stop
Main brand PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron)
Motor and hydraulic System
Servo motor 5.5kw with precious gear reducer
Hydraulic station 7.5kw , 200L tank
Run-out Table
Length 3M with side pnematic support
General introduction
1. Windows system touch panel. Quick importing NC instructions Via network or USB interface.
2.Visual work process monitoring
3.Vertex BD Software
4.German Bosch Rexroth hydraulic system. Quick loading and unloading mould design
5.High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing
6.Built-in maintenance free ink jet printer
7.Perfect forming. Accurate sizing





Equipment description


 1: Configuration of the machine

Uncoiler 1 set

Roll forming roller: 12 groups

PLC control system 1 set

Hydraulic cutting system: 1 set

Collection table



2: Working Process Flow of the omega profile forming machine

Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) - Cutting-Collection table



3: Technical Parameters:



A: Power supply:

380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)

Main motor power: 7.5KW

Pump power: 5.5kw



B:Uncoiler:

Inner diameter: 460-520mm

Outer diameter: 1300mm
loading weight: 2T



C:Forming part:

Feeding thickness: 0.6-1.2mm

Feeding width: 50-500mm

Forming speed: 8-12m/min

Cutting Deviation: 10m±2mm

No. of Roller station: 12 groups

Roller material: GCr15

Material of shaft: Cr40

Diameter of shaft: 42mm



D:Hydraulic System:

Hydraulic pressure: 10-12 Mpa

Cutter material: SKD11



E:Control system:

Full-automatic NC-PLC control system

Control channel: Colored touch screen

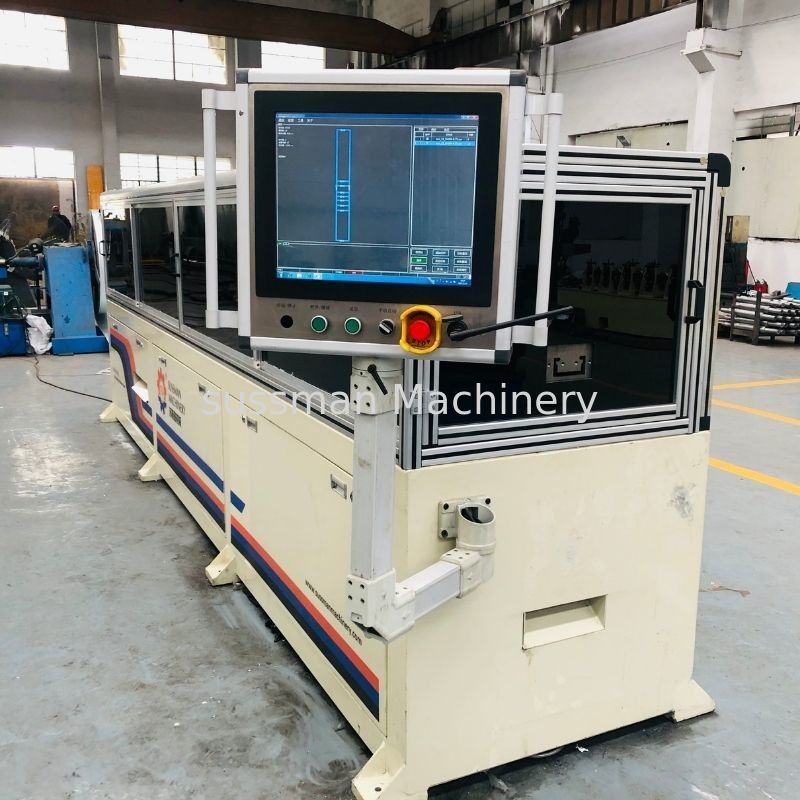

Our machine photo

7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine 0

7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine 1

7.5KW C89 LGS Hydraulic Vertex Stud Roll Forming Machine 2





Contact Details
Sussman Machinery(Wuxi) Co.,Ltd

Contact Person: Celia Wang

Tel: +8613606193016

Send your inquiry directly to us (0 / 3000)
