Stud And Track Roll Forming Machine
>
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SS-MF |
5.5KW 25-30m/min Durable Omega Shape Metal Stud Roll Forming Machine
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Technical parameter
| Item NO |
Description |
Offered specification |
| 1.0 | Roll forming machine | Ceiling batten |
| 1.1 | Rolling speed | 25-30m/min(not include cutting time) |
| 1.2 | Rolling thickness | 0.48 mm to 0.55mm |
| 1.3 | Raw material | G550 Galvanized coils |
| 1.4 | Main motor | 5.5kw with gear box |
| 1.5 | PLC | Panasonic Brand |
| 1.6 | dimension | About 5500×435×1000(mm) |
| 1.7 | Effective width | 66mm |
| 1.18 | Voltage | 220V, 60HZ, 3phase |
| 1.9 | Roller stations | About 13 stations |
| 1.10 | Roller material | Cr40 Nitriding |
| 1.11 | Shaft diameter | Φ50mm ,material is 45# forge steel |
| 1.12 | Transmission | By chain One inch chain |
| 1.13 | Material of chain | 45# forged steel with frequency quenching |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Tolerance | 6m+-1.5mm |
Working Flow:
Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

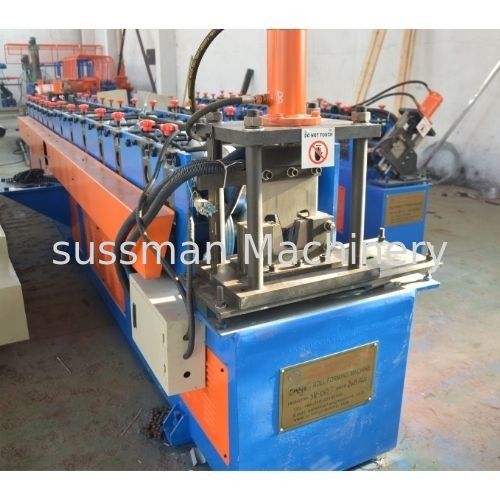

Machine Photo
