Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
5.5KW Main Motor Power 0-15m/min Wall Angel Channel Roll Forming Machine
Main Specifications
| Items | Specifications | |
| Material of coil | Material Thickness | 9mm galvanized Q235 |
| Forming system | Rolling Speed | 0-15m/min |
| Roller Stations | About 4 stations | |
| Roller Material |
Gcr15 Steel with quenching 70mm shaft
|
|
| Maim Motor Power | 55 kw | |
| Hydraulic cutting Power | 15kw | |
|
Cutting system |
Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC Delta | |
| Weight | About 10 tons | |
| Way Of Drive | Motor driven | |
| Size of machine | Length 5500mm* Width 1500mm* Height 1500m | |
| Cutting system | Hydraulic servo following cutting 11kw |
Profile Drawing:

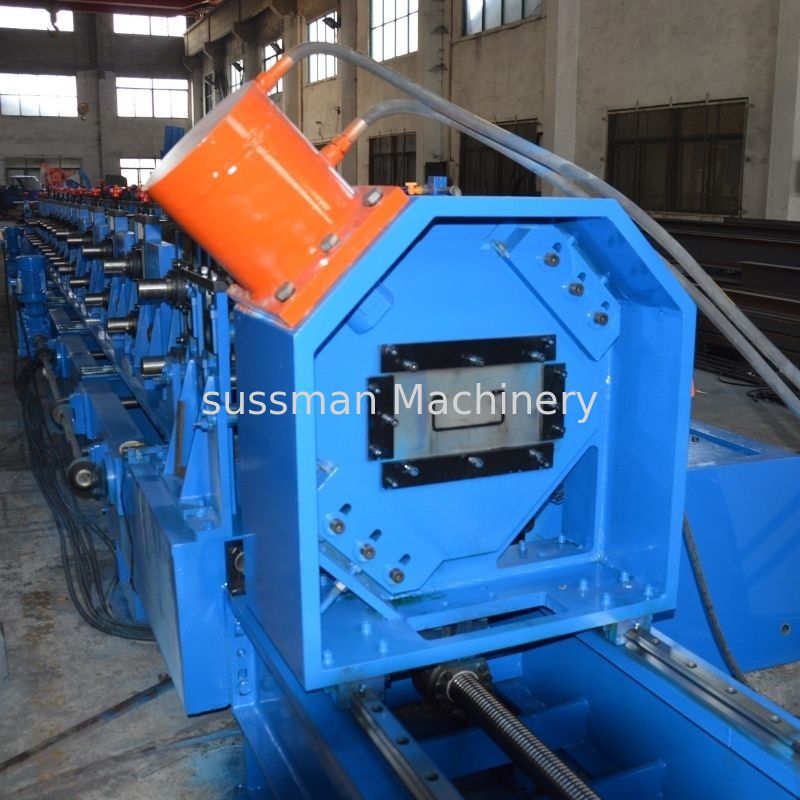

Machine Pictures:
