Hydraulic Steel Frame Roll Forming Machine , Q235 Wall Angel Channel Making Machine

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-ST

Product Details

Material Thickness:

9mm Galvanized Q235

Rolling Speed:

0-15m/min

Roller Stations:

About 4 Stations

Roller Material:

Gcr15 Steel With Quenching 70mm Shaft

Maim Motor Power:

55 Kw

Hydraulic Cutting Power:

15kw

Material Of Cutting:

CR12mov With Quench Treatment

Hardness:

HRC58-62

Highlight:

Hydraulic channel making machine

Hydraulic steel frame roll forming machine

Q235 Wall Angel channel making machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Film and steel

Delivery Time

60 days after deposit

Supply Ability

5 sets/month

Product Description

Hydraulic PLC Control 9mm Galvanized Q235 Wall Angel Channel Roll Forming Machine

Main Specifications

	Items	Specifications
Material of coil	Material Thickness	9mm galvanized Q235
Forming system	Rolling Speed	0-15m/min
	Roller Stations	About 4 stations
	Roller Material	Gcr15 Steel with quenching 70mm shaft
	Maim Motor Power	55 kw
	Hydraulic cutting Power	15kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC Delta
	Weight	About 10 tons
	Way Of Drive	Motor driven
	Size of machine	Length 5500mm* Width 1500mm* Height 1500m
Cutting system		Hydraulic servo following cutting 11kw

Profile Drawing:

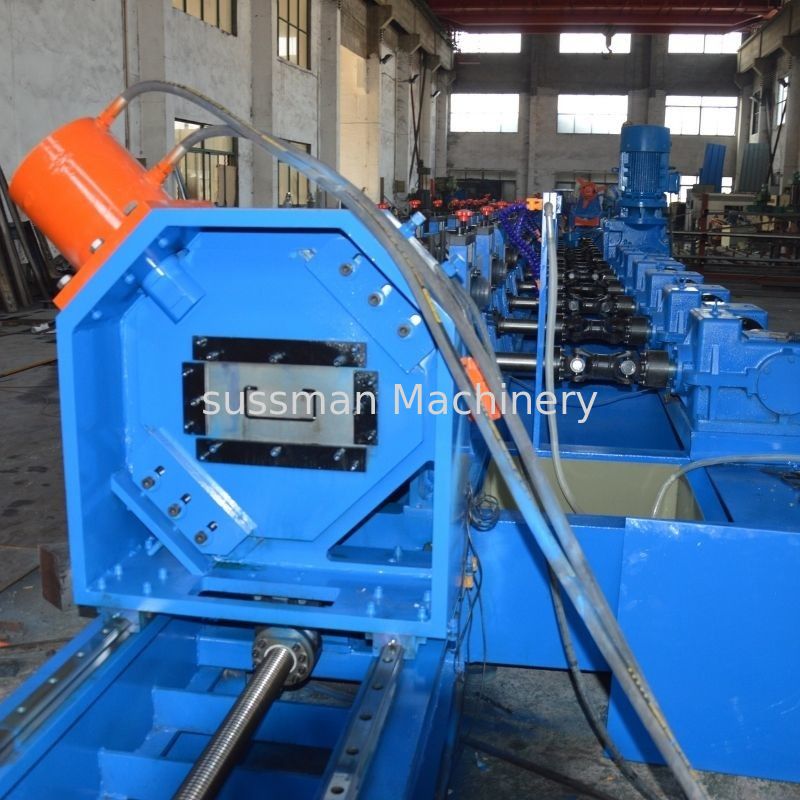

Machine Pictures:
