Rack Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | CE.SGS.ISO |
| Model Number | SS-RS |

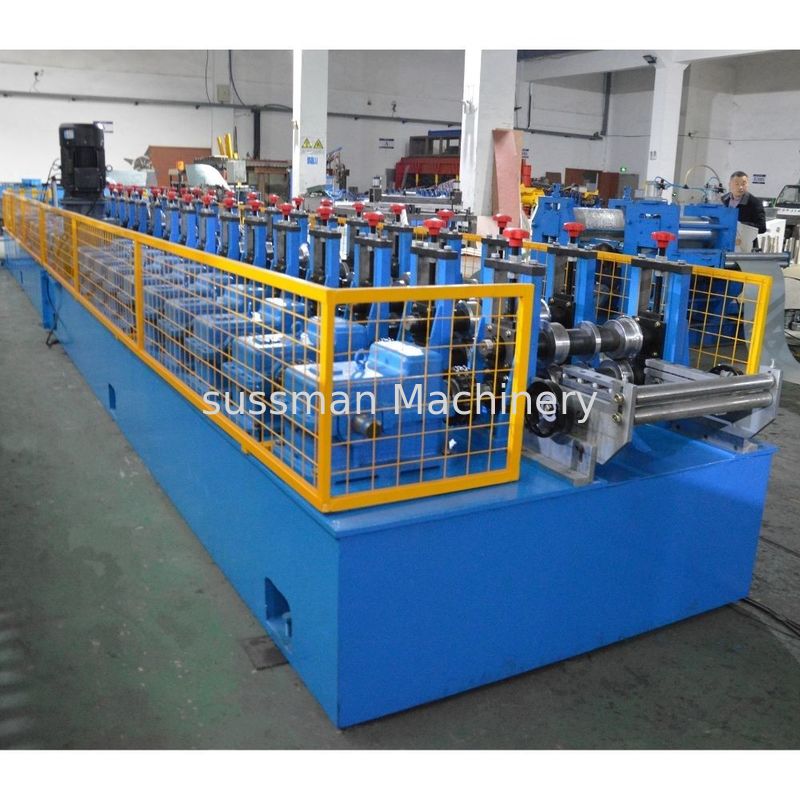

15KW Power Galvanized Steel Storage Shelf Rack Upright Racking Shelves Roll Forming Machine
| The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc. | |
| Model number | Rack Roll Forming Machine |
| Material Thickness | 1.5-3.0mm |
| Product speed | 0-12meter / per minute |
| Roller Stations | About 18 stations |
| Roller Material | Gcr15 Steel with quenching |
| Shaft Material | 45# Advanced Steel (Diameter: 76mm), thermal refining |
| Material Of Cutting | CR12Mov with quench treatment |
| Electronic control | PLC control with touch screen |
| Weight | About 10 tons |
| S.N | Equipment name | Quantity |
| 1 | 3T hydraulic un-coiler | 1 set |
| 2 | Leveling device 400mm | 1 set |
| 3 | Servo feeding device 400mm | 1 unit |
| 4 | Press machineJH21-80 | 1 unit |
| 5 | Main roll forming machine | 1 set |
| 6 | Cutting holder | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 | Control system ( including control box) | 1 set |
| 9 | Out tables | 2 units |
| 10 | Spare parts | 1 package |
| 11 | Cutting dies | 1 set |
| 12 | Punching die set | 1 set |
Machine Shows
Application
1) Easy in installation and maintenance.
2) Hardened structural steel and components provide long life and safe operational stability.
3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.
4) Running in an automation, high durability and stability.
5) Compact design, meet custom demands.
