Hydraulic Punching Angle Channel Roll Forming Machine

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	SS-DW

Product Details

Material Thickness:

0.4-1.2mm

Forming Speed:

20m/min

Roller Stations:

18 Stations

Main Motor Power:

5.5Kw

Hydraulic Power:

4Kw

Way Of Drive:

1 Inch Single Chain

Roller Material:

Cr40 Steel With Quenching

Highlight:

Angle Channel Roll Forming Machine

Hydraulic Punching Channel Roll Forming Machine

Hydraulic Punching channel making machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

tandard package with film, plastic and steel wire. (or customized) .

Delivery Time

50 working days after deposit

Supply Ability

10 sets/month

Product Description

Hydraulic Punching 1 In 3 Out Wall Angle Channel Roll Forming Machine

Technical Parameter

Items	Specifications
Material of coil	Material Thickness	0.6mm Stainless Steel
Profile sizes	mm	72*25mm
Punching	Type	2 sets
Forming system	Rolling Speed	About 5 pieces /min line speed
	Roller Stations	About 18 stations
	Roller Material	Gcr15 Steel with quenching 60mm shaft
	Maim Motor Power	5.5 kw Servo motor
	hydraulic station Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC control system
	Weight	About 3.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 5500mm* Width 600mm* Height 1000m
De-colier	bearing 2 tonne, automatical decoiler

Working process

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

Hydraulic Punching Angle Channel Roll Forming Machine 0

Machine Components

3 ton passive de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Out table	2 units
Following cutting	1 unit
Safety cover	1 unit

Profile of product

Hydraulic Punching Angle Channel Roll Forming Machine 1

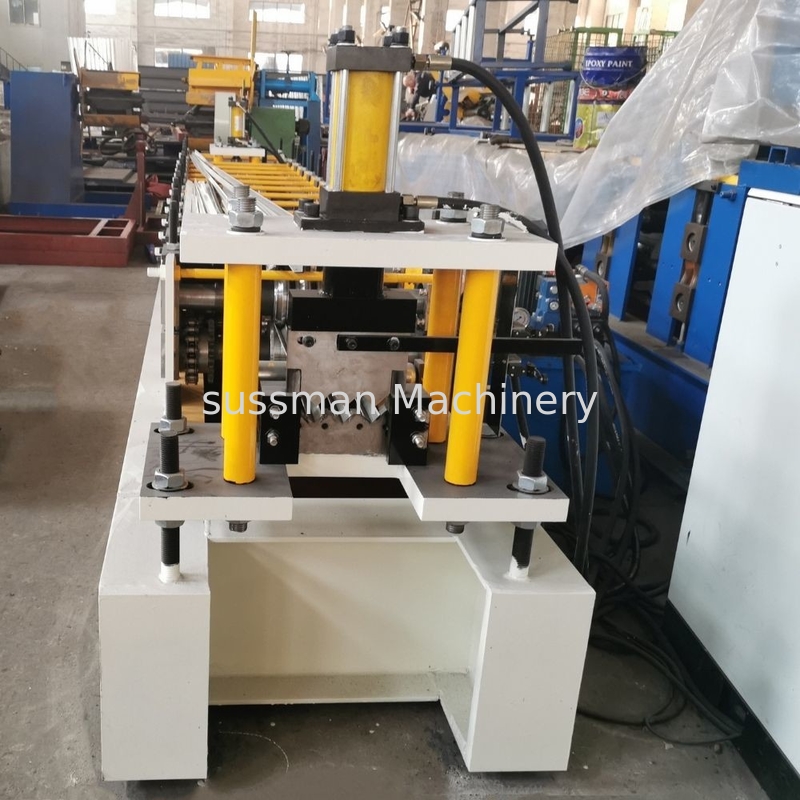

Machine Photo

Hydraulic Punching Angle Channel Roll Forming Machine 2

Hydraulic Punching Angle Channel Roll Forming Machine 3

Sample:

Hydraulic Punching Angle Channel Roll Forming Machine 4
