| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | SGS,CE.ISO |
| Model Number | SS-BB |

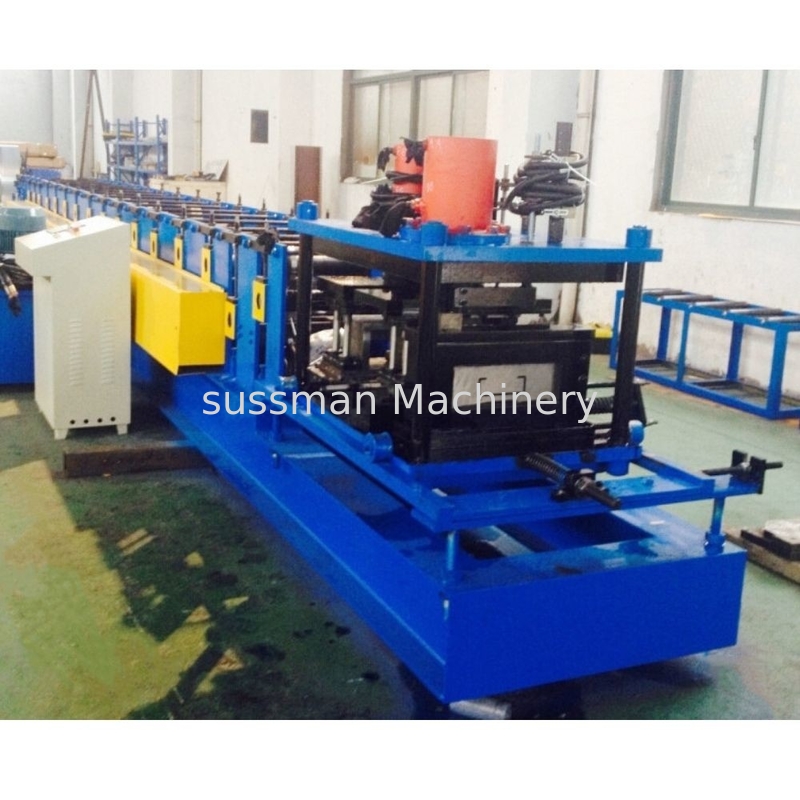

Automatically Racking Box Beam Roll Forming Machine Locking Box Beam Machine
Roller Former Machine Specification:
Product speed: 8~10M/min
Roller material: GCR15 bearing steel, quench treatment
Forming stations: 15 stations + 4 folded machine
Shaft diameter: 75mm
Forming structure: Guiding column,chrome-plated
Machine base frame: tube welding structure
Transmission type: Chain
Motor power of main machine: 7.5KW*2sets
Bearing: HRB brand ,needle roll bearing, taper bearing
Voltage: 380V, 50 Hz, 3phase.
Bolt: 8.8 grades
Weight: about 8 tons
| Name | Quantity (set) |
| 3 ton passive De-coiler | 1set |
| Level device | 1set |
| Hydraulic cutting machine | 1set |
| Main roll forming machine | 1set |
| Run out table | 2 sets |
| Control panel | 1set |
| Safety cover | 1 set |
| Spare parts | 1 package |
| Joint machine | 1set |
Machine working flow:
Manual decoiler---->leveling machine ----> roll forming machine ---->cutting device ---->Product Stand Tables----> folded machine
Profile Drawings:
Finished Samples:
Advantage:
1.Produce different box beam size by changing spacers.
2.Easy operation, low maintenance cost
3.Infinite sizing(any size within machine range),help to save material
