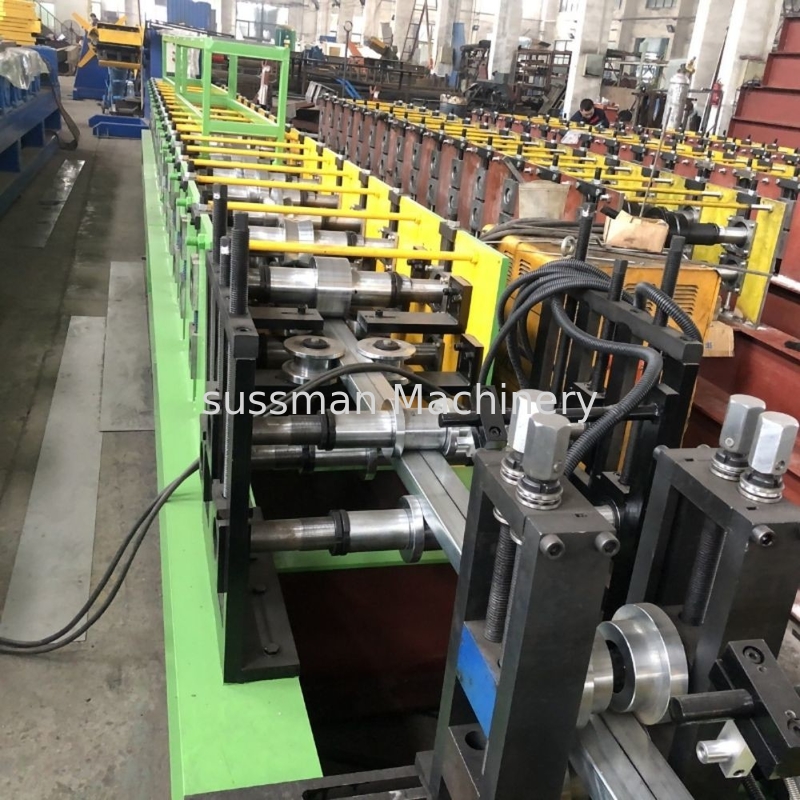

GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System
  • GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System
  • GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System
  • GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System
  • GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System
  • GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System

GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System

Place of Origin China
Brand Name SUSSMAN
Certification SGS,CE.ISO
Model Number SS-BB
Product Details
Type:
Laser Welding Box Beam Roll Forming Machine
Raw Material:
1.6-2.5mm Galvanized Steel Plate
Forming Speed:
8~10M/min
Roller Material:
GCR12 Bearing Steel
High Light:

Box Beam Rack Roll Former

,

GCR12 Rack Roll Forming Machine

,

Laser Welding Rack Roll Former

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD19999-29999 Per set
Packaging Details
standard packing
Delivery Time
60-90 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Laser Welding Galvanized Steel Box Beam Rack Roll Forming Machine 5-8 Meters/min



The overall production line consists of decoiler, roll forming system ,laser welding device, saw cutting system , electric control system , out tables, etc.

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: about 8-12 meters / min
3. Forming Steps: about 20 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain drive
7. Main Power with reducer: 15KW WH Chinese Famous
8. Cutting: Saw cutting
9. The whole machine is controlled by industry computer-PLC.
10. PLC-Delta, Japan English and Chinese Language
11. Encoder-Omron, Japan
12. Electric parts--Schneider
13. The outline of the machine: about 20 meters*1.0meter*1.2 meters

S.N
Equipment name
Quantity
1
3T hydraulic de-coiler with coil car
1 set
2
Main roll forming machine
1 set
3
Servo Fly saw cutting
1 set
4
Control system ( including control box)
1 set
5
6 meters out table
1 unit
6
Spare parts
1 package
7
Cooling system
1 set
8
Gear box driven
1 set
9
Laser welder and cool device
1 set


Working Flow

Manual de-coiler--leveling machine -- roll forming machine –Cutting device–-Product Stand Tables


working flow.jpg

Finished Products

GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System 1

GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System 2

GCR12 Box Beam Rack Roll Forming Machine II Laser Welding Upright System 3

Advantage



1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable
