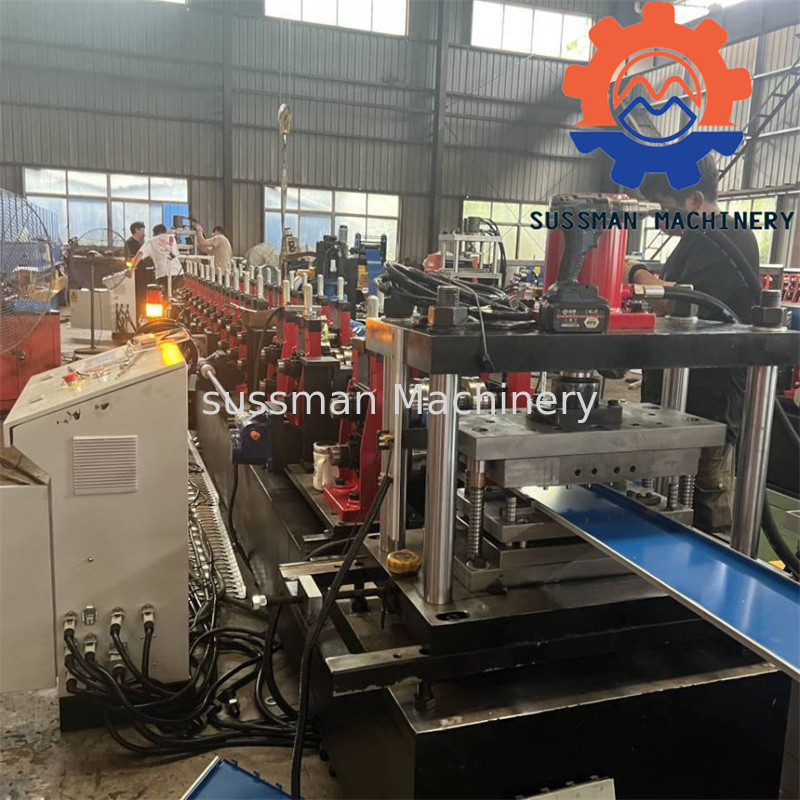

PLC Control Rack Shelf Back Panel Roll Forming Machine With 0.5-1.0mm Material Thickness
The main purpose of a shelf back panel is to prevent items from falling off the back of the shelf and to add strength to the overall structure. It also helps to distribute weight evenly across the shelf, preventing sagging or bending.
In addition to providing support, the back panel can also be used for aesthetic purposes. It can be painted or decorated to match the surrounding decor, or it can be left unfinished for a more rustic look, this machine is to make shelf back panel, hee is the machine technical data:
1. Rolling material material: material for color coated coil, steel plate
2. Rolled material thickness: 0.5-0.9mm
3. Rolled material width: 100mm and 200mm
4. Inside diameter of rolled material: φ500mm
5. Production line production speed: one or 2 pcs/min (about 6m finished products)
6. product drawings see both sides signed drawings
7. precision and technical requirements of the manufactured parts: length ±1.0mm, port distance ±1.0mm, straightness 0.5mm/m, width tolerance ±1mm, punching notch position degree error: ≤0.3mm;
8. Production line covers an area of approximately 25m x 3m wide x 1.8m high
9. Production line labor: 2 people
10 production line power: about 7.5KW
Shelf Back Panel Machine Components
| Main Components | |
| De-coiler | 1 set |
| Roll forming machine | 1 set |
| Punching device | 2 sets |
| Hydraulic cutting and bending device | 1 set |
| Hydraulic station | 1 set |
| PLC control box | 1 set |
| Safety cover | 1 set |
| Ran out table | 2 sets |
| Control box system | 1 set |
Working flow of Rack Shelf Machine
De-coiler—→Hydrauli -pre-cutting—→ Hydraulic punching notch—→Main roll forming machine—→Hydraulic cutting&Bending—→ Run out table
Shelf back panel Application
The application of shelf back panels is common in various settings, including homes, offices, retail stores, and warehouses. They are often used in kitchen cabinets, bookshelves, display shelves, and storage units. By adding a back panel, the functionality and appearance of the shelf or cabinet are enhanced.
The panel can be customized in terms of size, thickness, and material composition to meet specific requirements.
1. The machine adopts PLC full-range intelligent control, and the automation program is high, safe and efficient.
2. The forming frame is welded using high strength channel steel. High strength and long service life.
3. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
4. The material of the molding die is Cr12, quenching treatment, hardness: HRC 56-62 °C.
5. The transmission structure is chain transmission.
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
5. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi station), half an hour.
6. What's the warranty period?
18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
