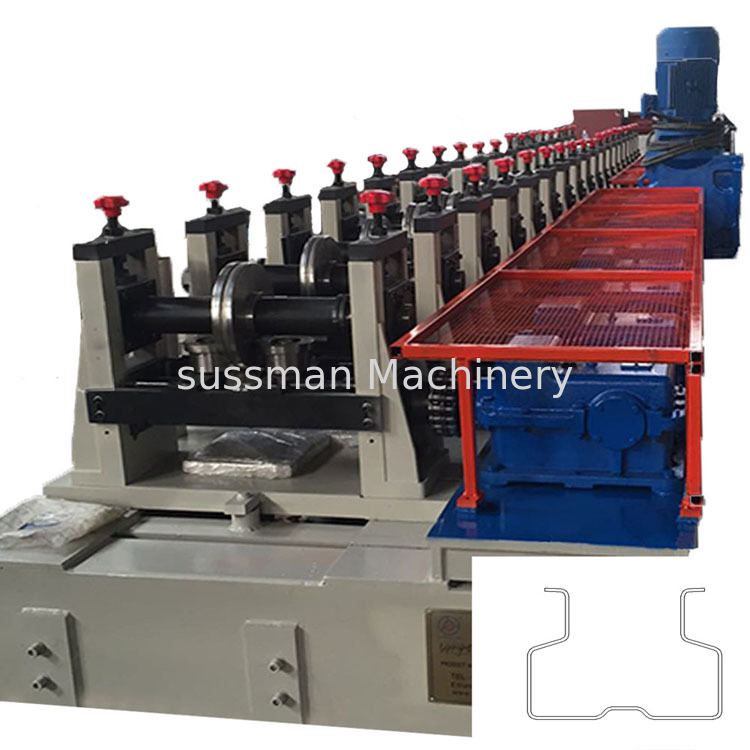

Rack Roll Forming Machine
>
|
| Place of Origin | Wuxi |
| Brand Name | sussman machinery |
| Certification | CE SGS ISO |
| Model Number | SM-SD-048 |
Rack Roll Forming Machine is a roll forming equipment that is designed for businesses that need to cut and form metal pieces with precision and accuracy. It is equipped with a cutting length of 3-6m, a roller diameter of 70mm, a hydraulic cutting power of 5.5KW, and a forming thickness of 0.5-1.0mm. The forming motor power of this rack roll forming machine is 7.5KW. It provides users with a reliable, efficient, and accurate way to produce metal pieces, allowing businesses to reduce production costs, save time, and increase output.
This rack roll forming machine has a number of features that make it a great choice for businesses. Its cutting length, roller diameter, and forming thickness can be precisely adjusted to meet the specific needs of any business. The hydraulic cutting power and forming motor power are both powerful and reliable, providing businesses with the assurance that their products will be produced to the highest standards. This machine also offers easy to use controls, making it easy to operate and maintain.
Rack Roll Forming Machine is the perfect roll forming equipment for businesses who need to produce metal pieces with accuracy and precision. It is reliable, efficient, and precise, and it provides businesses with an easy to use, cost-effective, and time-saving way to produce high-quality pieces. With its adjustable cutting length, roller diameter, and forming thickness, as well as its powerful hydraulic cutting power and forming motor power, this rack roll forming machine is an excellent choice for businesses looking for an efficient way to produce metal pieces.
Main roll forming machine is composed of 10 components, each playing its own role.
Suitable plate material is necessary for roll forming machine work, it's generally thickness 1.5-2.0mm, galvanized steel or blank steel.
High work efficiency is the biggest benefit of roll forming machine, here the working speed is 12 meters /min. 18 stations is the forming steps.
Material of roller, shaft and cutting knife are also important for roll forming machine working, the roller material is Gcr15, which is quench HRC58-62 plated chrome, the shaft is 45# advanced steel (the diameter is 76mm), which has been through thermal refining, and cutting knife material is Cr12Mov, also with quench HRC58-62.
Driven system of the roll forming machine is gear box, while the main power is 15KW WH Chinese Famous, as well as hydraulic station power is 4KW Wuxi Wanshen Chinese famous brand. The whole machine is controlled by industry computer-PLC.
Shelf box panel is widely used across multiple industries for storage systems. It can be customized to adjustable sizes, thickness and materials, such as for warehouses, retail stores, convenience stores, supermarkets, liquor and pharmacy stores, etc. The color and finish of shelf box panel can also be tailored to your design needs. Moreover, different hinge designs make it easy to install and use.
Customized Rack Roll Forming Machine from Sussman Machinery
If you are looking for a reliable manufacturer for your Rack Roll Forming Equipment, look no further than Sussman Machinery. We offer high-quality Roll Forming Equipment with model number SM-SD-048, which is CE SGS ISO certified. Our minimum order quantity is 1 SET and the price is discussed. The packaging is naked packaging with steel. The delivery time is 60 days and the payment terms are TT/LC. We can supply 20 sets of this equipment. The cutting length is 3-6m, the hydraulic cutting power is 5.5KW, the forming thickness is 0.5-1.0mm, the forming width is 100mm, 200mm, and the weight is 5T.
We provide technical support and service for our Rack Roll Forming Machine. Our team of knowledgeable engineers is available to assist you with any questions you may have about the product. We can provide a wide range of services, such as:
Our team is committed to providing you with the best customer service and technical support possible. If you have any questions, feel free to contact us at any time.
A1:The Brand Name of Rack Roll Forming Machine is Sussman Machinery.
A2:The Model Number of Rack Roll Forming Machine is SM-SD-048.
A3:The Place of Origin of Rack Roll Forming Machine is Wuxi.
A4:The Certification of Rack Roll Forming Machine is CE SGS ISO.
A5:The Minimum Order Quantity of Rack Roll Forming Machine is 1 SET.
